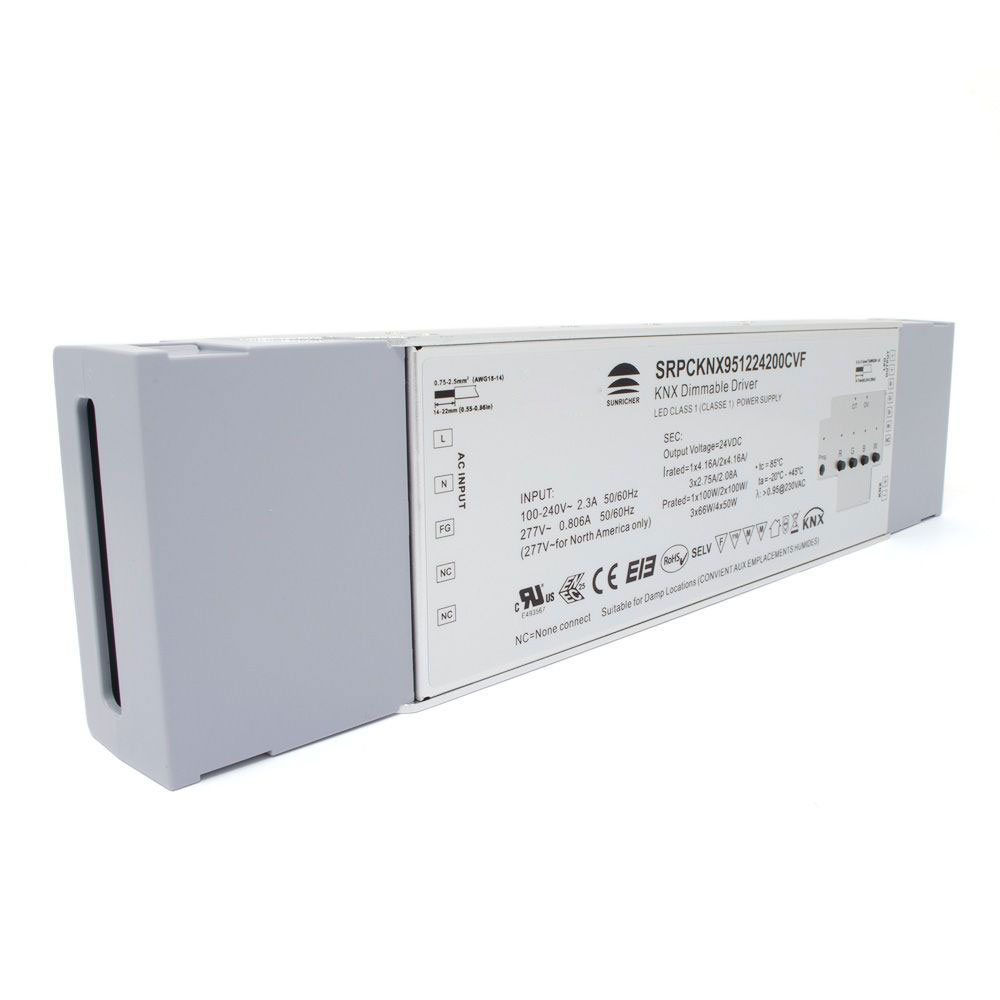

Sunricher KNX 200W Dimmable Driver
The SRPCKNX951224200CVF four channel 24V KNX Dimmable Driver from Sunricher is a commercial grade KNX driver suitable for both commercial and domestic applications. KNX protocols allow full control over your home and office automation products with bi-directional communications between the driver and the KNX master controller. The driver can be set to work with single colour, dual colour (CCT) Tricolour (RGB) and Quad colour (RGBW) 24v LED Lighting products. Simply connect into the KNX BUS to integrate the unit into your existing KNX control system. The KNX Address can be set using the on-board menu buttons and digital display.
The unit also offers a "Staircase" Lighting function in addition to the standard KNX dimming functions. This is a clever function that allows the lighting in this mode to dim down to pre-set level for a certain period of time then switch off.
For further details on all our Sunricher professional control products please contact our technical sales team by phone, email or via Live chat on our website.
Technical Specification
Product Code: SRPCKNX951224200CVF
Product Packed: Gift box
Product Type: Controller / Driver
Colour: Brushed Aluminium
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 200W
Input Voltage: 100V - 240V AC
Output Voltage: 24V DC
Output Current: 4.1A / Channel Ch1 + Ch2 + Ch3+ Ch4 = 8.4A Max
Connectivity KNX Protocols
Size: 330mm x 79mm x 39mm
Dimmable: Yes
Power Factor >: 0.98
Adjustable Bit Rate: No
Adjustable PWM: No
Operating Temp: NA
