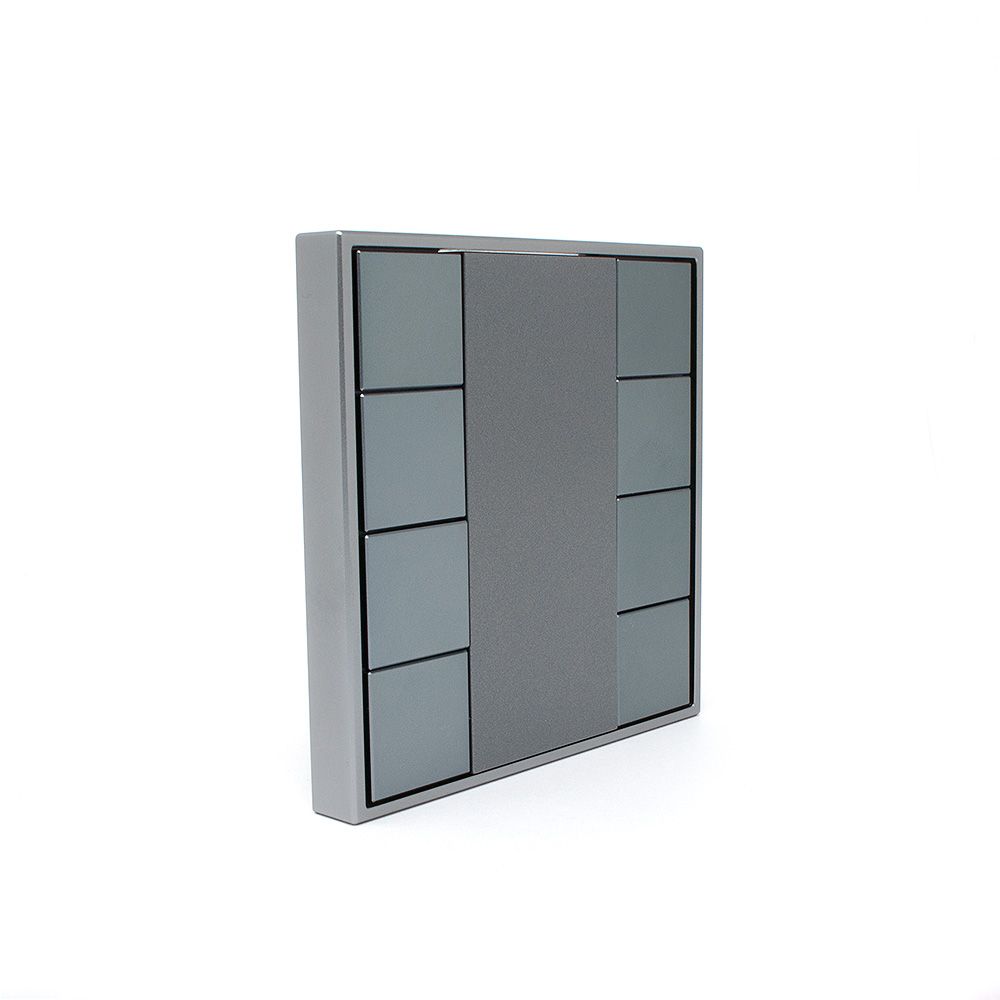

Sunricher KNX 8 Button Switch Wall Panel

(0 Reviews) | Write a review

SKU: SRKN9551NK8

As part of our professional Sunricher KNX control system, this eight-button configurable wall panel is a stylish addition to your home automation system running KNX protocols. The wall panel is powered directly off the KNX BUS so there is no need for any additional power supply to the panel. Each button can be configured directly from the ETS4 softwar and buttons can be assigned independently or in pairs depending on your requirements.

The wall panel is supplied with a fixing kit so it can be mounted into a standard UK back box and with only the two core DMX BUS line to connect into the wall panel for power and control.

For more information on any of our Sunricher control products please contact our technical sales team by phone, email or via live chat on our website.

Technical Specification
Product Code:   SRKN9551NK8
Product Packed:   Gift box
Product Type:   Controller
Colour:   Grey
IP Rating:   IP20 Non-Waterproof
Guarantee Period:   5 Years
Connectivity:   KNX Protocols
Size:   80mm x 80mm x 26.6mm (box depth required is 17.6mm),
Dimmable:   Yes
Operating Temp:   NA
