Sunricher KNX to DALI Master

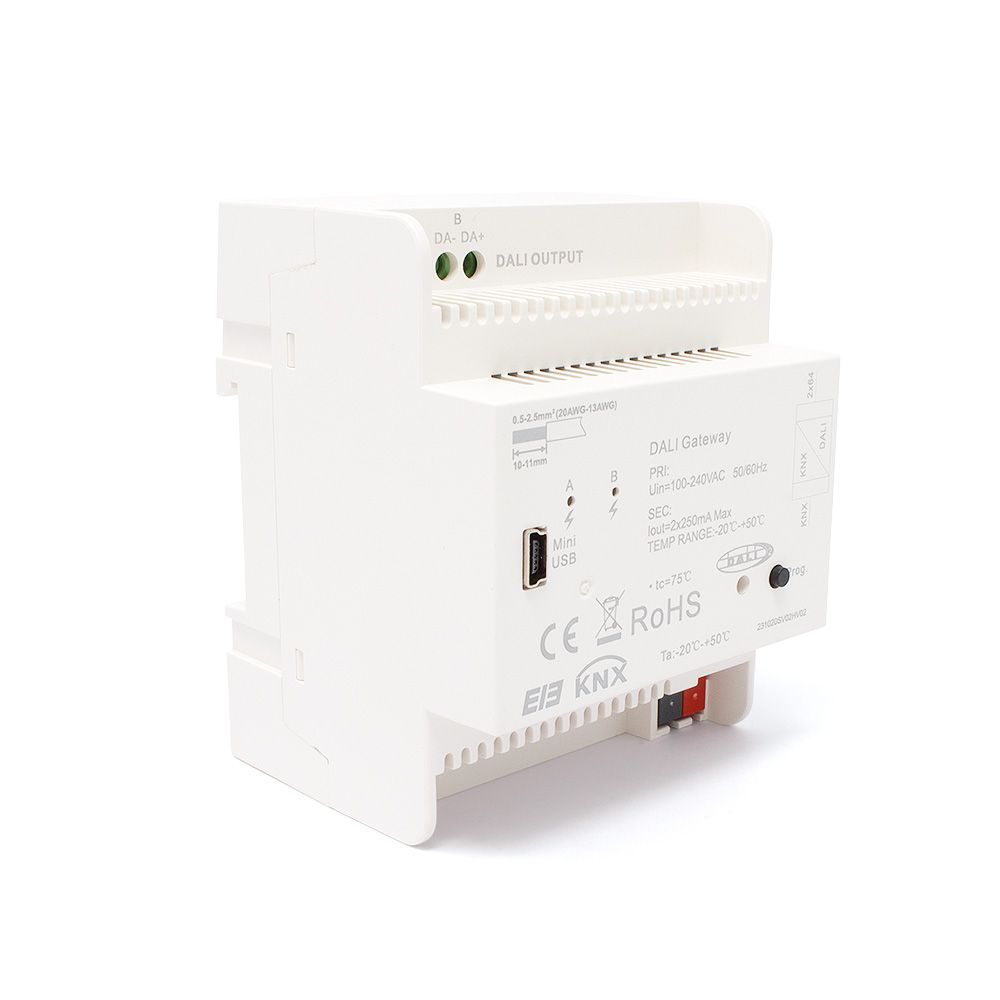

The Sunricher KNX to DALI Gateway enables you to control your DALI 1 or DALI 2 products from your KNX automation system. The device has 2 x DALI outputs which can support up to 64 DALI devices on each output. This device is from our professional range of Sunricher control products and enables smooth integration between the KNX and DALI protocols. With its 35mm DIN mount, the gateway can be fitted to a standard 35mm DIN rail for ease of mounting, and it easily connects to both the KNX and DALI BUS. The unit is powered by a 100V to 240V AC 50/60Hz mains power supply.
The two DALI outputs on the gateway support DT6, DT8, DT8 RGB, Tc and XY Coordinates to IEC 62386, and you can mix the DALI DT6 & DT8 devices in a mixed configuration if required, the lamps connected to each of the DALI Channels are controlled via KNX using: Broadcast, 16 x lighting groups & 6 x scenes and the fault status (lamps or ballasts) of each DALI device or the lighting group is sent via the KNX BUS.
There is a Mini USB port on the front of the unit to connect to a PC for programming, to program the KNX / DALI Gateway, the KNX and DALI parts need to be programmed separately, for the DALI section this needs to be done with the DALI PC software "DALI MASTER", the KNX part of the Gateway needs to be programmed using the "ETS5" Software.
For more information on this and all our professional control products please contact our technical sales team by phone, email or via live chat on our website.
Technical Specification
Product Code: SRKN9100DA22CH
Product Packed: Gift box
Product Type: DALI Gateway
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100V - 240V AC
Connectivity: KNX Protocols
Dimmable: Yes
DALI Channels: Two x DALI Channels
Operating Temp: NA
Gateway Supply Voltage: 100-240VAC, 50/60Hz
Total Current Draw from Mains Maximum: 48mA
Total Power Consumption via Mains: Maximum 11W
KNX BUS Voltage 21-30V DC, via the KNX/EIB BUS
KNX Current Consumption Maximum: 10mA
Power Consumption via KNX: Maximum 210mW
Number of Outputs: 2 x DALI Outputs
Number of DALI Devices: Maximum 64 per output
Supported Device Types: DT6, DT8 Tc, DT8 XY coordinate, DT8 RGB
DALI Voltage Typical: 16VDC
Maximum Supply Current: 2x250mA
