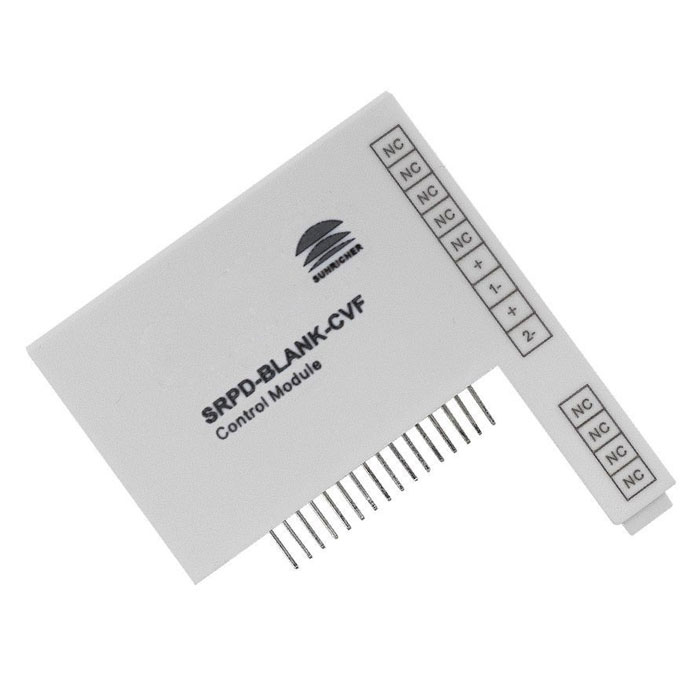

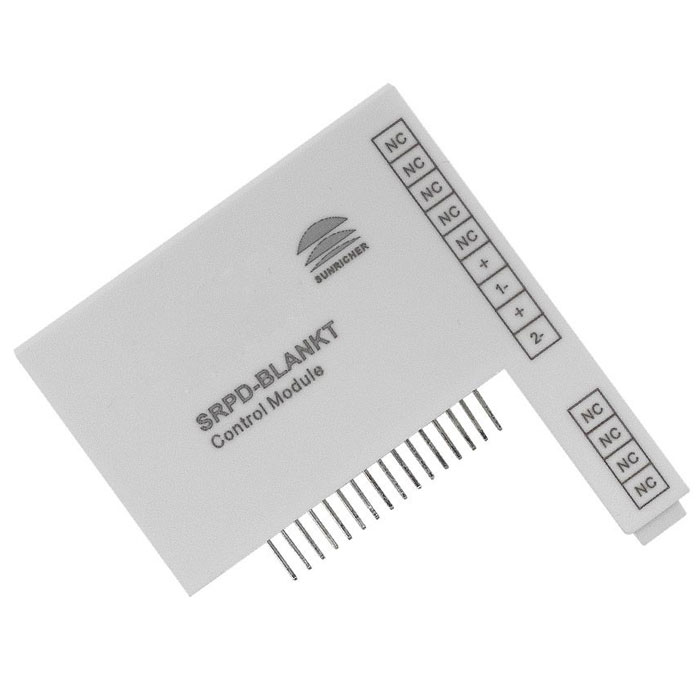

This Blank LED control module is from the Sunricher range. It is designed to be used with a range of LED 2 channel modular drivers.
This LED light control module is to be used in place of a module driver to enable the device driver to be used as just a light LED driver without any control options. It is easily installed by simply plugging into the appropriate modular driver.
This blank control module is the perfect solution for LED power supplies. It is ideal for domestic and commercial use. It can be installed in a range of areas such as hotels, restaurants and even your home.
The LED control module allows you to switch your connected LED lighting on or off.
The light led driver can be used with a range of LED lighting products such as high power LED strip lights/ LED tapes that do not have an in built LED driver.
If at some point you decide to use a driver that controls LED products using RF, DMX, DALI, ZIGBEE, Z-Wave or 0-10v control protocols, simply swap the blank module with the appropriate control module.
This control module must be fitted into a 2 channel modular driver that requires a 100v - 240v AC mains input to power your lighting. It enables you to use your modular driver to meet your personal requirements.

Technical Specification
Product Code:    SRPDBLANK
Product Packed:    Gift box
Product Type:    Module
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
PCB Weight:    Not Applicable
CRI Rating (greater than):    CRI >80
Dimmable:    No
LED Type:    Not Applicable
Average LED life Hrs:    30,000
Colour Temperature Variation:    IP20 No
Power Factor >:    Not Applicable
Continuous Operation:    Not suitable for 24/7 continuous use
Relative Humidity:    8% to 80%
Operating Temp:    0-40°C
