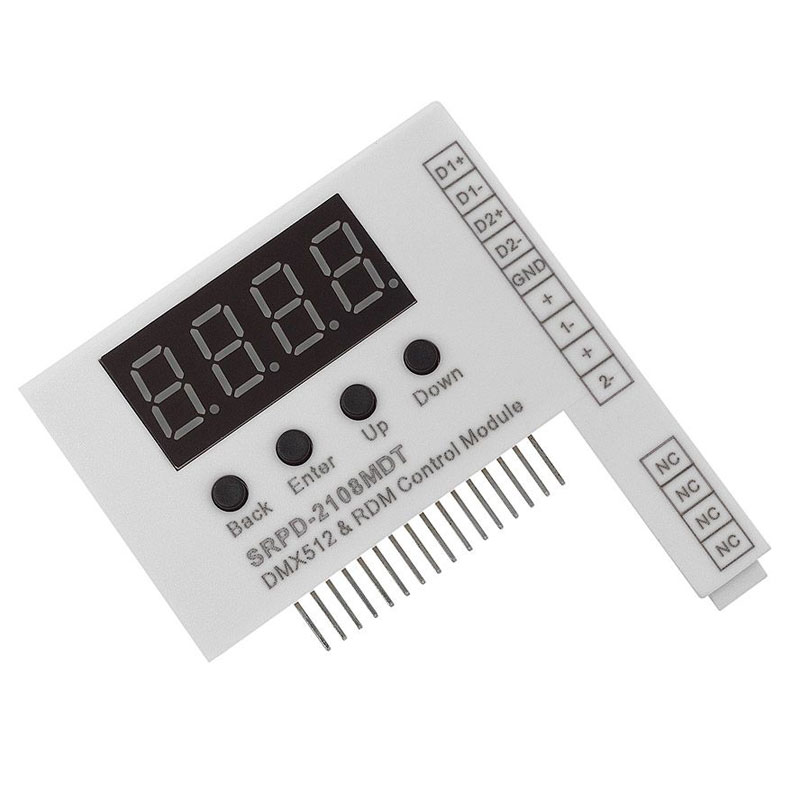

Sunricher Modular DMX512 / RDM Enabled 2 Channel Control Module
This RDM enabled DMX512 control module is from the Sunricher range. It is designed to be used with a range of LED modular drivers. This enables you to control your LED lighting that uses a DMX512 control protocol.
The control module transforms your driver into a LED light controller. This means that you have one unit rather than a driver and separate controller or decoder making controlling your lights easy.
This DMX512 LED light control module is ideal for commercial and domestic installations. It can be used in a range of spaces such as hotels, offices or even theatre to control stage lighting.
The LED controller features a RDM function. This enables you to set the DMX address, Channel quantity, PWM output resolution (8 bit or 16 bit), PWM output frequency (up to 30KHz), GAMMA ray dimming curve value and DMX decoding mode.
This DMX module will control your Single colour or Dual colour LED products. It is an ideal lighting control solution. It can used with a wide range of LED lighting products such as LED strip lights/ LED tapes.
The control module features a digital display to ensure that selection of the correct DMX address is easy. Ensure it is plugged into a 2 channel LED module to operate.
This control module is an ideal installation into your smart home. DMX communication protocols allow the modular fitting to be integrated into your DMX network and home automation network. This DMX driver is the perfect way to extend your DMX control system and achieve effortless control over your professional lighting.
Technical Specification
Product Code: SRPD2108MDT
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Connectivity: DMX 512 protocols
Dimmable: Yes
Voltage Type: Constant Voltage
Adjustable Dimming: Curve & Gamma Value Yes
Adjustable Bit Rate: Yes
Adjustable PWM: Yes
Relative Humidity: 8% to 80%
RDM: Yes
Operating Temp: -20 to +45
