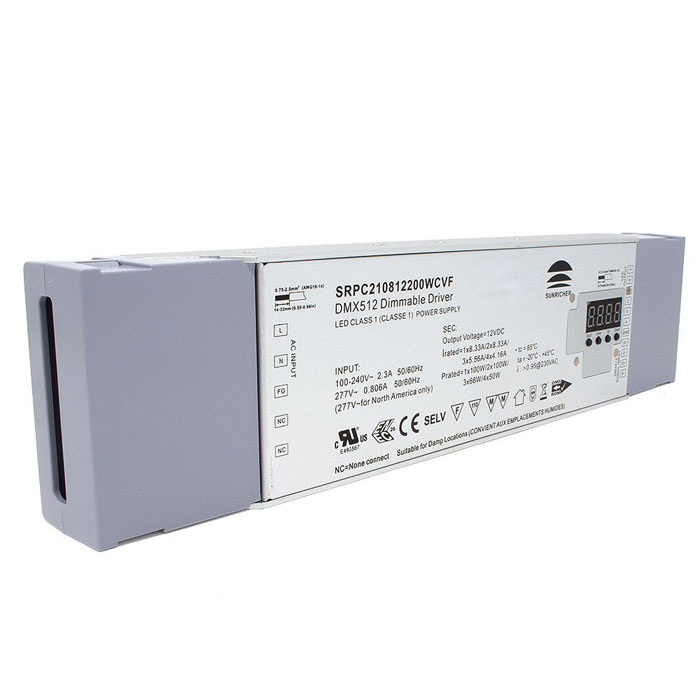

    Sunricher Professional Constant Voltage 12V 200W DMX Driver with RDM

      (5 Reviews) | Write a review
    SKU: SBL-SRPC210812200CVF
    Discontinued
    Starting at: $209.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This high quality, professional 200w, 4 channel DMX LED Driver from our range of Sunricher control systems is a UL, ENEC and TUV approved product. This driver features RDM bi-directional communications (when used with an RDM enabled DMX controller).
    With a 12v constant voltage output and a 100v to 240v AC universal input, this DMX driver has many professional features including:
    Adjustable PWM frequency (500Hz to 30kHz)
    Adjustable PWM output resolution (8bit and 16bit)
    Adjustable Gamma-Ray dimming curve from 0.1 to 9.9 with logarithmic or linear dimming options.
    The unit can be set to 1, 2, 3 or 4 channel modes and it has a power factor of over 0.9 which is greater than 90%. the driver offers smooth dimming with no flickering and when dimming the driver is silent with no audible buzz.
    This DMX Driver with RDM features is compatible with our range of LED tapes and other LED lights.
    This DMX driver is ideal for use in TV studios with professional filming equipment as there is no banding or flickering when dimming.

    Technical Specification
    Product Code:    SRPC210812200CVF
    Product Packed:    Gift box
    Manufacturer:    LED Technologies
    Product Type:    DMX 512 Driver
    Colour:    Brushed Aluminium
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Wattage:    200w
    Current:    Max. 8.3A/ch
    Input Voltage:    100v - 240v AC
    Output Voltage:    12v DC
    Connectivity    :  DMX 512 protocols
    Size:    330 x 79 x 39mm
    Dimmable:    Yes
    Average LED life Hrs:    30,000
    Colour Temperature Variation:    IP20 No
    Power Factor >:    0.98
    Wireless Range:    Up to 30 metres
    Continuous Operation:    Not suitable for 24/7 continuous use
    Voltage Type:    Constant Voltage
    Adjustable Dimming Curve & Gamma Value:    Yes
    Adjustable Bit Rate:    Yes
    Adjustable PWM:    Yes
    Relative Humidity:    8% to 80%
    RDM:    Yes
    Operating Temp:    -20 to +45
