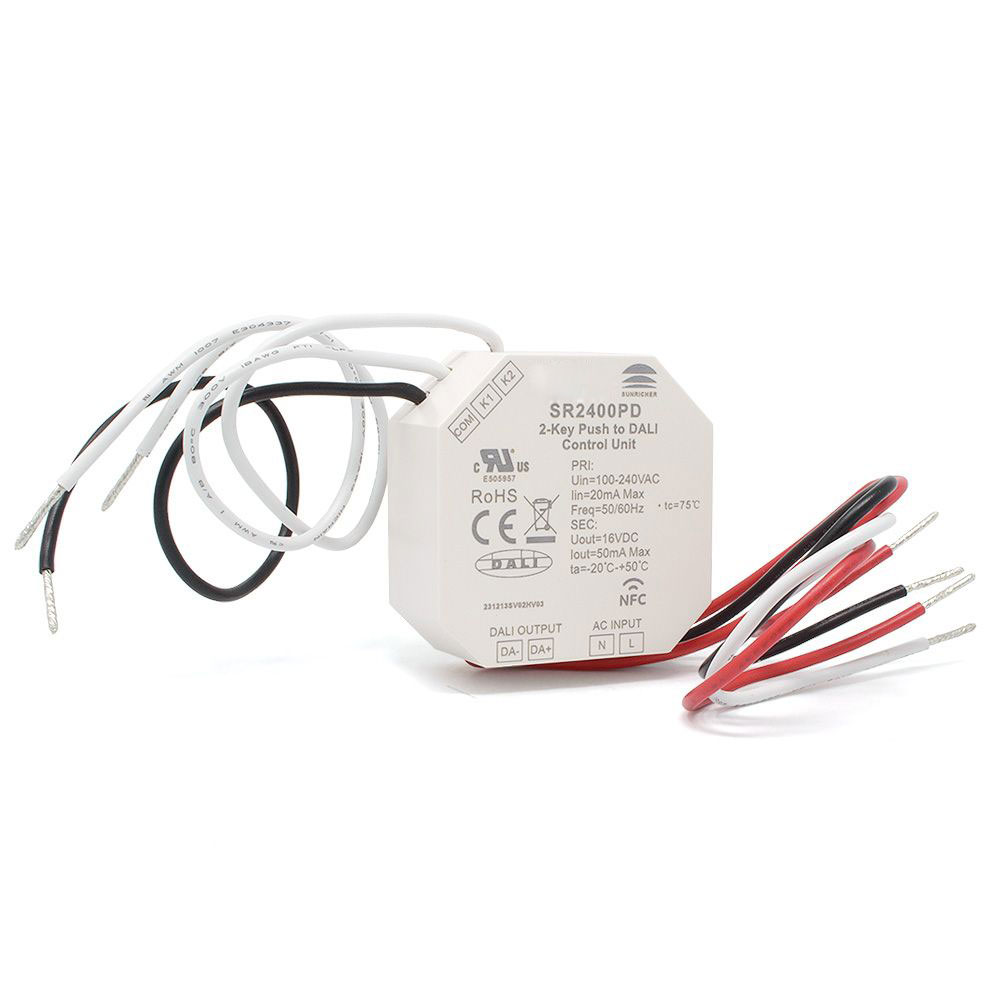

The SR2400PD DALI controller from our Sunricher range of professional LED control products.
This DALI (stands for Digital Addressable Lighting Interface) allows you to activate a function in your DALI system of products. This function can be pre-programmed, for example, you may want a light to turn on when a motion sensor is activated, and for that light to stay on for some time. This can be done with our DALI lighting control systems.
Programming is done using an NFC (Near Field Communication) device. Simply hold the device next to the DALI controller and program the parameters and the function that you wish the unit to carry out.
The controller can be powered either from the DALI BUS (Passive mode) or from a 100V - 240V AC mains supply, (Active mode). The built-in 50mA DALI BUS power supply in the controller will power up to 25 x DT6 or DT8 DALI devices.
Note: An NFC App is available for your IOS or Android device, this is a free download from the Apple or Android App Store. This app enables you to program your NFC devices using your smartphone. QR Codes are provided on the data sheet to take you to the appropriate application.
This 2-Key control device has two modes.
The first mode on this device is a PUSH DIM Mode. This is where you can connect 2 x PUSH Switches (momentary switches) to the unit. When the switch is activated the signal is sent to the appropriate device and the function is activated.
The other mode is Corridor Mode, this mode should be selected when motion sensors are connected to the controller.
Note: Two motion sensors can be connected to the controller.
For more information on this or any of our professional control equipment, please contact our technical sales team by phone, email or through live chat via our website.
Technical Specification
Product Code: SR2400PD
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100V - 240v AC / DALI bus
Output Voltage: 16V DC
Output Current: 100mA
Connectivity: DALI protocols
Size: 45mm x 45mm x 20.3mm
Dimmable: No
DALI bus output: YES
Operating Temp: -20~50°C
