Sunricher PWM Data Repeater 4 Channel 8A Constant Voltage
This Pulse Width Modulation (PWM) LED data signal repeater is from the Sunricher range. It is suitable for professional lighting control.
This repeater is suitable for single, two and four channel control. It ideal for installations that require multiple LED lighting products to be synchronised together from one PWM signal. It features an output load of 8A and has 2 DC inputs.
It is a high quality and highly reliable product perfect for commercial or domestic installation. Ideal for controlling multiple lighting fixtures in a range of places such as offices, hotels or even your home. It can be used to control lighting in your living rooms or even your kitchen cabinet lighting.
The repeater is easy to install by simply connecting it to a PWM LED controller to allow easy control of multiple lighting fixtures. Then connect to a suitable driver and your chosen LED light source.
It can be used with a wide range of LED lighting products such as flexible LED strip lights/LED Tape. It features single, two or four channel operation.
The repeater can be used with most Sunricher controller. It is also possible to connect the repeater to PWM controllers from other manufactures that are not Sunricher.
It can control 12v, 24v or 36v single colour LED lighting products.
The data repeater will take power from the attached LED driver and not from the controller.
Technical Specification

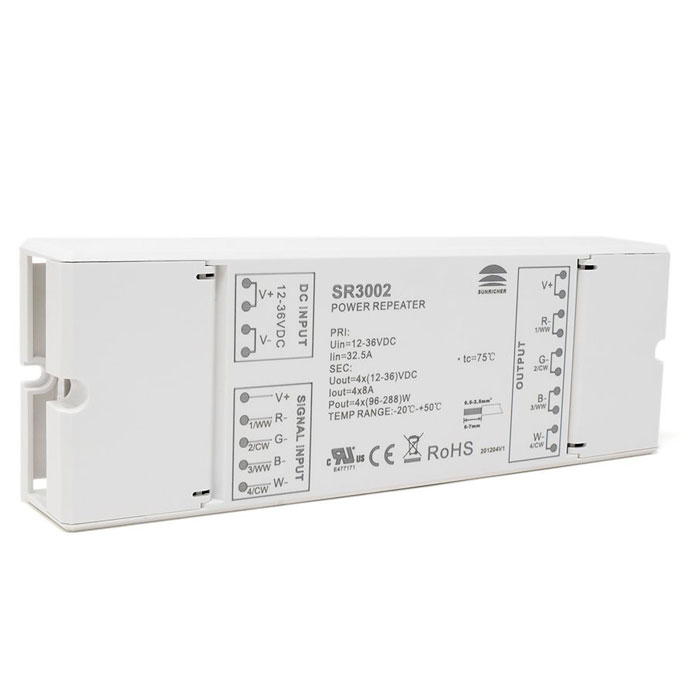

Product Code: SR3002
Product Packed: Gift box
Product Type: PWM Data Repeater
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 4 x 8A
Input Voltage:12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: PWM protocols
Size: 59 x 29 x 170mm
Dimmable: Yes
Continuous Operation: Not suitable for 24/7 continuous use
Adjustable PWM: Yes
Operating Temp: 0-40°C
