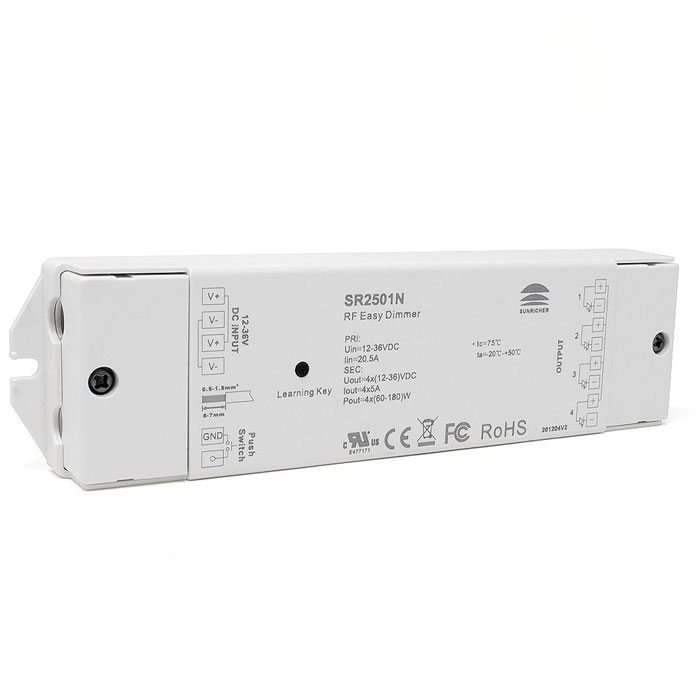

Sunricher RF 1 & 4 Zone Receiver (For SR2801F & SR2801E Handsets)
This innovative RF Receiver from Sunricher will control up to four channels of single colour LED products either all together or individually depending on which remote control handset is paired to the receiver.
To switch and dim all four channels together you would pair the receiver to the SR2801E handset, you can pair a receiver to each of the four channels zones on the handset.
For multiple zone operation from a single receiver (up to four zones) you would pair the receiver to the SR2801F handset allowing switching and dimming of each channel separately. Works with 12-36v LED products when connected to a suitable constant voltage driver.
Technical Specification
Product Code: SR2501N
Product Packed: Gift box
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 4x5A
Input Voltage: 12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: RF
PCB Weight: Not Applicable
Size: 178 x 46 x 22mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Operation Frequency: 868/915/434mHz
Operating Temp: 0-40°C
