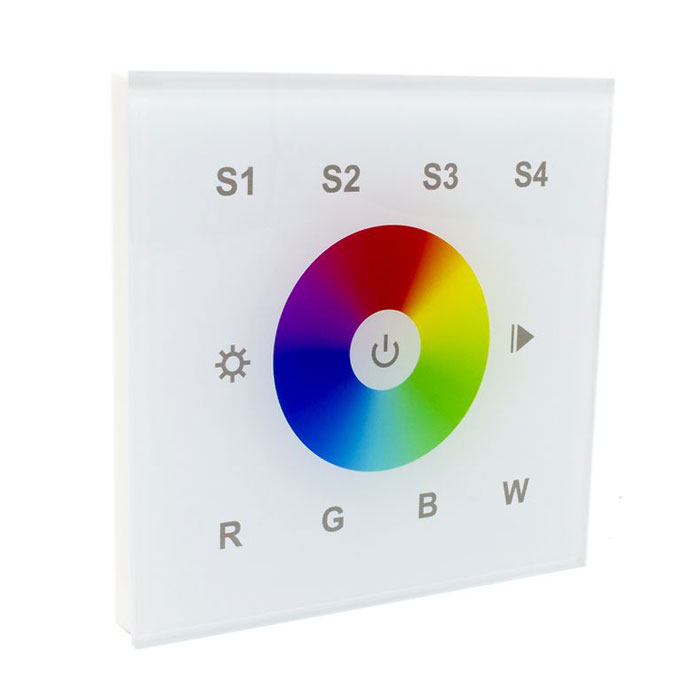

Sunricher RF 1 Zone RGBW Wall Panel White (Mains Voltage)
This wall control panel is from our range or SunRicher products. It is a high quality radio frequency remote control designed for controlling Quad Colour LED products in a single zone.
It is ideal for installing in the domestic or commercial market, where reliable, high quality products are required.
The effortless adjustment of 4 colour channels enable you to get the perfect lighting for the space required. Instant colour selection is available using the touch sensitive disc on the LED controller.
It is also possible to adjust the individual brightness levels of all four channels individually. This enables you to achieve the perfect custom made mix required. It can achieve bright bold colours to light pastel colours.
It also features dimming of the RGB and White channels between 0% - 100% of your LED lighting products.
It can then store the unique mix into 4 programmable scenes. The programs can be effortlessly recalled at the touch of a button.
The LED light controller also features ten effects that can be selected and adjusted for both run speed and brightness. This gives you effortless control over your LED light products.
Using its high quality touch control LED light control, this LED remote control panel features:
Smooth Dimmable adjustment of LED strip lights
Smooth adjustment of RGBW colour adjustment
20m wireless range
Pairing with wireless receivers/ controllers
This RF remote control controller is compatible with our new range of four channel SunRicher receivers. It will control 12v, 24v or 36v quad colour products.
The wall control panel has an attractive finished touch sensitive glass panel. It can operated within 20m of the receiver unit.
Technical Specification
Product Code: SR2820BACWHITE
Product Packed: Gift box
Product Type: Controller
Colour: White / Glass
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100v - 240v AC
Connectivity: RF
Size: 86 x 86 x 29.1mm
Dimmable: Yes
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
Frequency Range: 869.5 / 434MHz
Operation Frequency: 869.5/434MHz
Operating Temp: 0-40°C
