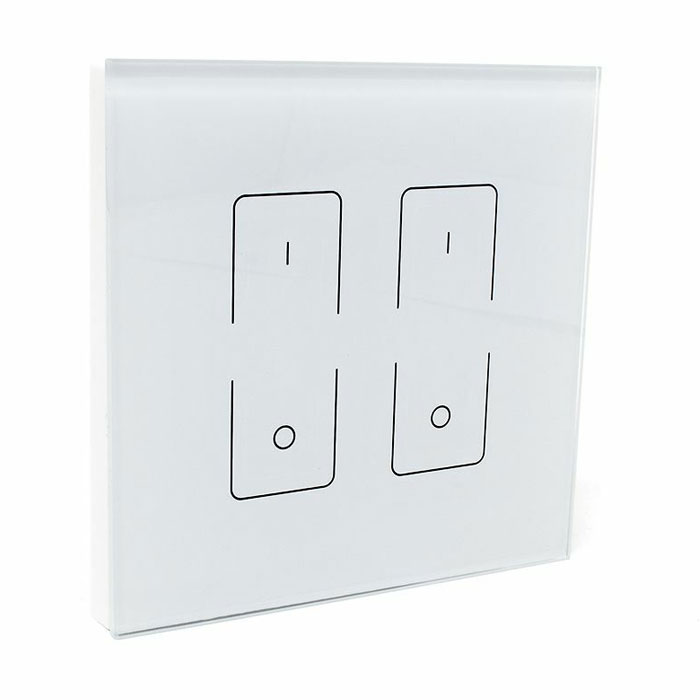

Sunricher RF 2 Zone Wall Panel for SR2501N Receivers (Low Voltage)
This is a stylish two zone RF remote control wall panel from Sunricher. It can control up to two zones for single colour LED lighting products. The unit is compatible with the SR2501N range of receivers with a range of up to 20m.
Effortlessly control your lighting with this LED light controller by simply touching the button for the appropriate zone. This will switch your lighting on or off. To smoothly dim each zone simply touch and hold the appropriate button until the required lighting level is achieved.
It is possible to connect up to eight wall panels to each receiver but an unlimited number of receivers to each zone on the wall panel.
Using its high-quality touch control LED light control, this LED control panel features:
Smooth Dimmable adjustment of LED strip lights
20m wireless range
Pairing with wireless receivers/ controllers
With a stylish white glass sensitive panel, this wall mounted controller is ideal for both domestic and commercial applications. It can be used for a range of LED lighting products that require wireless control. The touch sensitive glass panel also has a handy back light which makes it easy to see in the dark.
Technical Specification
Product Code: SR2805T1WHITE
Product Packed: Gift box
Product Type: Controller
Colour: White / Glass
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 12v / 24v DC
Connectivity: RF
PCB Weight: Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than): CRI >80
Dimmable: No
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Low Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 868/869.5/434MHz
Operating Temp: 0-40°C
