Sunricher RF 4 Zone RGBW Wall Panel Black (Mains voltage)
This wall control panel is from our range or SunRicher products. It is a high quality radio frequency remote control designed for controlling Quad Colour LED products in one zone.
It is ideal for installing in the domestic or commercial market. The effortless adjustment of 4 colour channels enable you to get the perfect lighting for the space required. It is highly reliable and a high quality product.
Instant colour selection is available using the touch sensitive disc on the LED controller. It is also possible to adjust the individual brightness levels of all four channels individually. This enables you to mix the perfect colour mix required, from bright bold colours to light pastel colours.
It can then store the unique mix into four programmable scenes. The programs can be instantly recalled at the touch of a button.
The LED light controller also features ten effects that can be selected and adjusted for both run speed and brightness. This gives you effortless control over your LED light products.
Using its high-quality touch control LED light control, this LED remote control panel features:
Smooth Dimmable adjustment of LED strip lights
Smooth adjustment of RGBQ colour adjustment
20m wireless range
Pairing with wireless receivers/ controllers
This RF remote control controller is compatible with our new range of four channel SunRicher receivers. It will control 12v, 24v or 36v quad colour products.

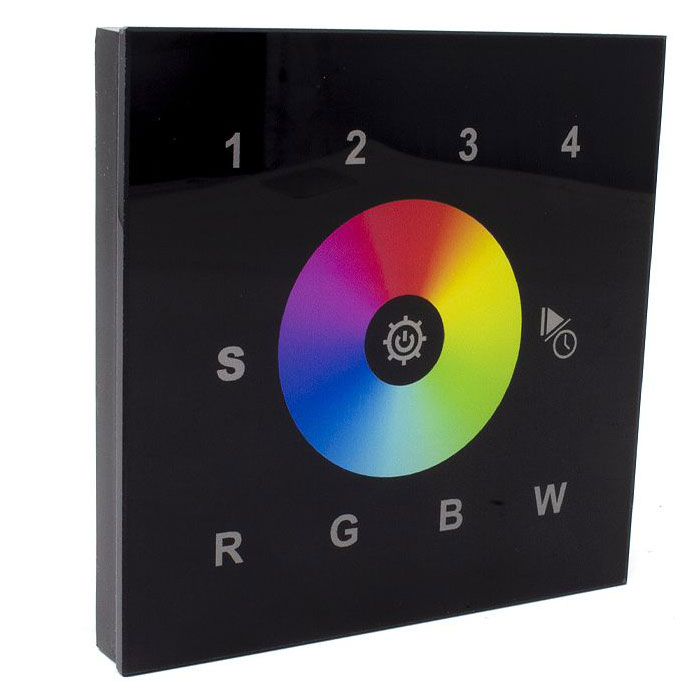

The transmitter has an attractive black finished touch sensitive glass panel. It can operated within 20m of the receiver units.
Technical Specification
Product Code: SR2820ACBLACK
Product Packed: Gift box
Product Type: Controller
Colour: Black
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100v - 240v AC
Connectivity: RF
PCB Weight: Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 869.5/434MHz
Operating Temp: 0-40°C
