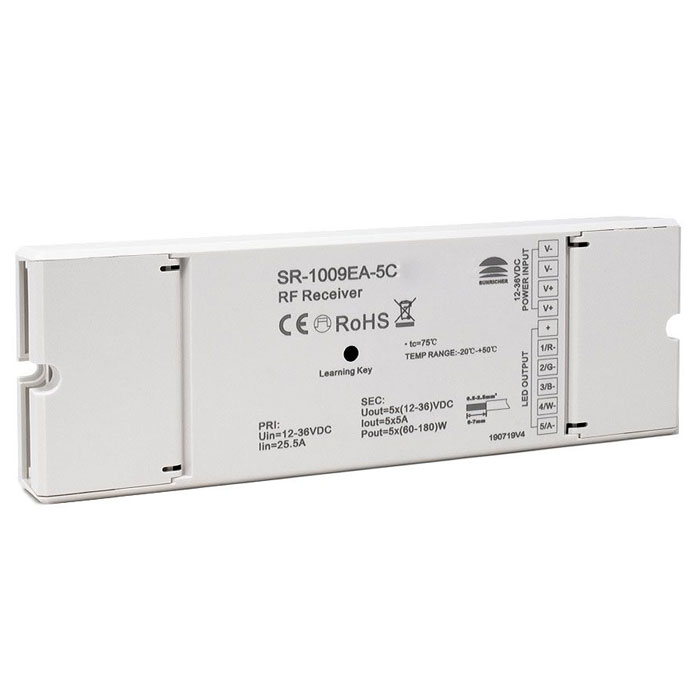

This Sunricher RF five-channel RF LED Receiver is a professional quality LED control product. The LED remote receiver is suitable for use in domestic and commercial environments such as hotels, restaurants and retail outlets.
The radio frequency receiver is simple to pair and can be used with any of the handheld or wall-mounted Sunricher RF signal transmitters of up to five channels.
Ready to go out of the box, connect a suitable driver unit to the LED Light receiver then simply pair the unit with one of our range of Sunricher controllers. Control your 12v, 24v or 36v colour-changing LED Lighting products such as LED strip lights.
Each receiver can be paired with up to eight different transmitters and operated within 20m of the transmitter units so multiple switches can be placed to control your lighting.
It is also possible to mix wall-mounted units and hand-held remote controllers to operate the same receiver and there is no need for connecting wires between each receiver. This is especially useful for controlling more than a single zone of LED lighting with multiple receivers.
Browse our range of LED tape that can be controlled with this Sunricher RF receiver. Sunricher products also include a range of single colour, RGB & RGBW colour-changing RF receivers. This receiver can be implemented into your home automation system for control through smart home hubs.
Technical Specification
Product Code: SR1009EA5C
Product Packed: Gift box
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 5 x 5A
Input Voltage: 12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: RF
PCB Weight: Not Applicable
Size: 178 x 46 x 22mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 869.5 / 916.5 / 434MHz
Operating Temp: 0-40°C
