Sunricher RF 5 x Channel RGB+CCT Double Touch Slider RF Wall Panel White (Mains voltage)

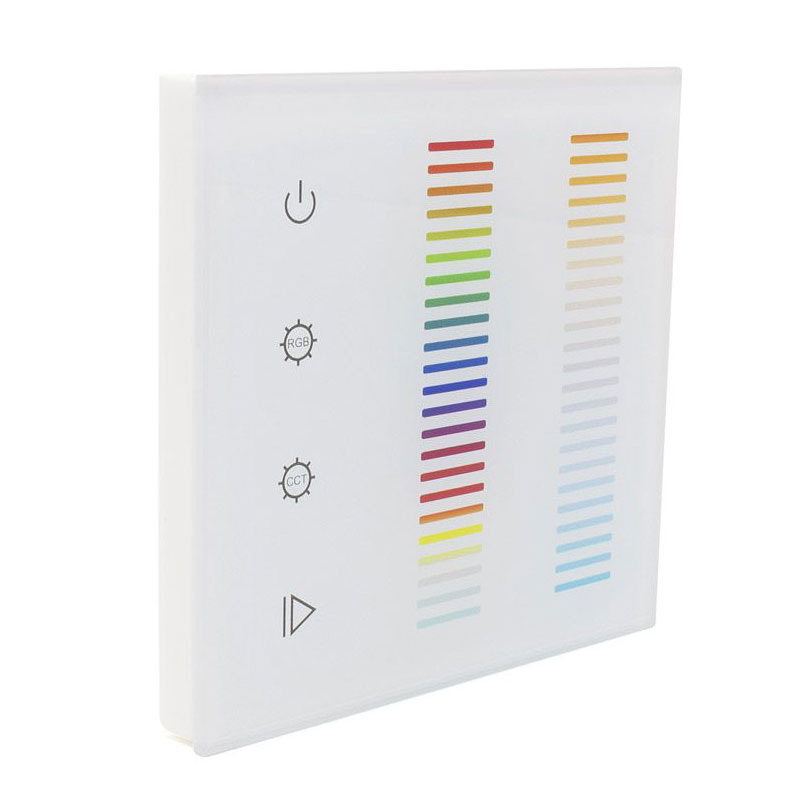

This stylish Sunricher touch sensitive glass front Radio Frequency remote wall panel is designed to work wirelessly with the SR1009EA5CH Sunricher Receiver / Controller.
The two touch sliders on the RF remote control offer fast and accurate RGB colour tone adjustment. It has independent control of your Dual colour (CCT) LED lighting products. You can control the RGB Colour and Dual Colour LEDs respectively in 5 channels.
The LED light control panel is a single zone unit. It has one programmable scene that can be recalled at the touch of a button.
There are ten built-in effects with a pause function. The wall panel is also back lit so can be easily operated in the dark.
Using its high-quality two touch sliders LED light control, this LED wall control panel features:
Smooth Dimmable adjustment
Smooth colour changing of LED strip lights
10 built in programs
Use of 5 channels
Easily paired with wireless receivers/ controllers
This LED control panel is ideal for both domestic and commercial applications where wireless control of your RGB+CCT LED lighting is required.
Technical Specification
Product Code: SR28345CACWH
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100v - 240v AC
Connectivity: RF
PCB Weight: Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 869.5 / 434MHz
Operating Temp: 0-40°C
