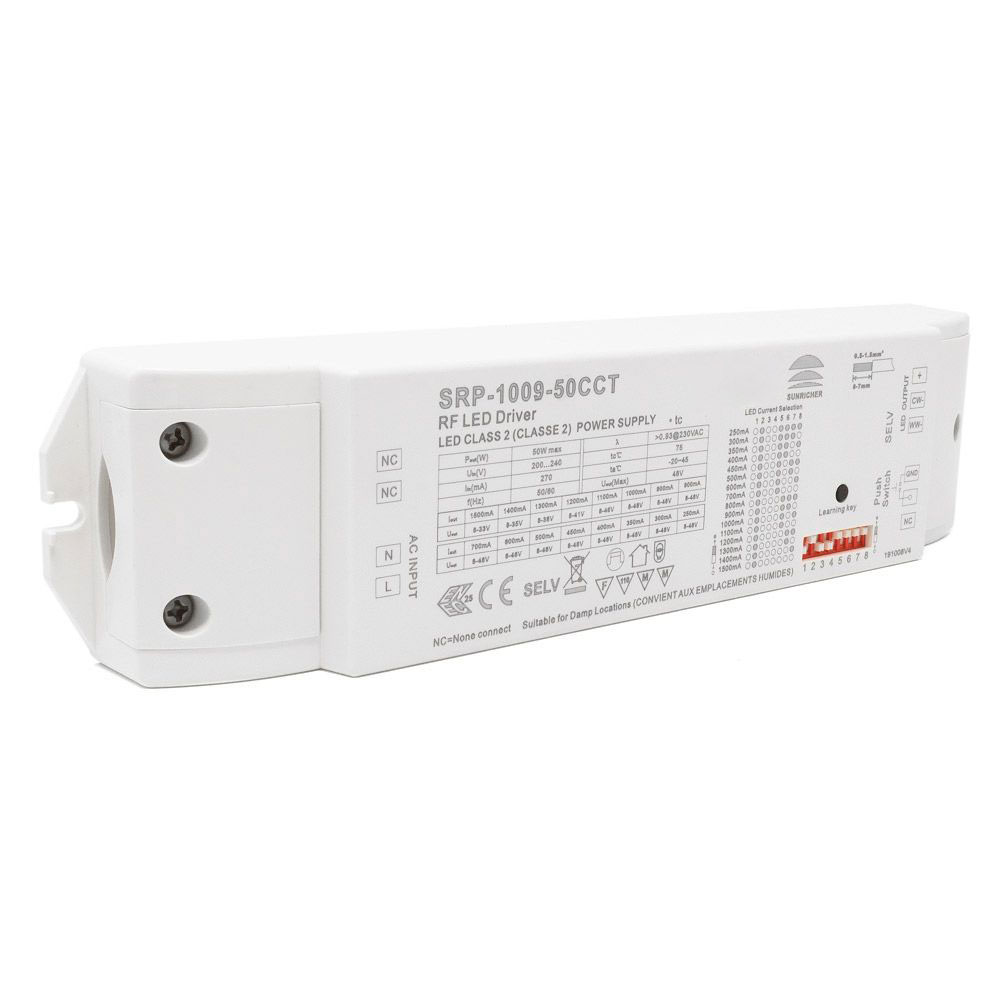

    Sunricher RF Constant Current 50w Dual Channel LED Driver

      (1 Reviews) | Write a review
    SKU: SBL-SRP100950CCT
    Discontinued
    Starting at: $139.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Nov,23 and Fri,Nov,29. order with 2days,9hrs and 31 min.

    This remote controlled, constant current LED driver can be paired to any of the Sunricher SR1009 compatible dual channel RF handsets or wall panels. With an input voltage range of 200-240v AC (50-60Hz), an output voltage from 8-48v DC and a switchable output current rating this dimmable LED driver has the flexibility to switch and smoothly control your constant current, colour temperature adjustable (CCT) LED product flicker free with none of the buzzing noise normally associated with LED dimmers.
    The driver is fitted with Short Circuit, Over Voltage and Over Temperature protection with auto recovery after the fault has been removed.
    Perfect for installation in commercial and domestic properties this high-quality driver has a maximum cold start inrush current of just 2A at 230v AC.

    Technical Specification
    Product Code:    SRP100950CCT
    Product Packed:    Gift box
    Product Type:    Power Supplies
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Wattage:    50w
    Input Voltage:    200 - 240v AC
    Output Voltage:    8-48v
    Connectivity:    RF & WiFi
    Size:    210 x 50 x 32mm (L x W x H)
    Dimmable:    Yes
    Colour Temperature Variation:    IP20 No
    Wireless Range:    Up to 20 metres
    Continuous Operation:    Not suitable for 24/7 continuous use
    Voltage Type:    Constant Current
    Adjustable PWM:    No
    Relative Humidity:    10% - 95% RH non-condensing
    Rated Voltage:    50w
    Rated Power:    50w
    Voltage Range:    200-240V AC
    Frequency Range:    50/60Hz
    Power Factor:    >0.9
    Efficiency:    87% @ 230VAC
    AC Current:    0.27A @ 230VAC
    Inrush Current:    COLD START Max. 2A at 230VAC
    Working Temperature:    -20℃ - +45℃
    Working Humidity:    10% - 95% RH non-condensing
    Storage Humidity:    10% - 95% RH
    Storage Temperature:    -40℃ - +80℃
    Safety Standards:    ENEC EN61347-1, EN61347-2-13 approved
    Withstand Voltage:    I/P-O/P: 3.75KVAC
    EMC Emission:    EN55015, EN61000-3-2, EN61000-3-3
    EMC Immunity:    EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV
    Operation Frequency:    869.5 / 916.5 / 434MHz & WiFi
    Operating Temp:    -20 to +45
