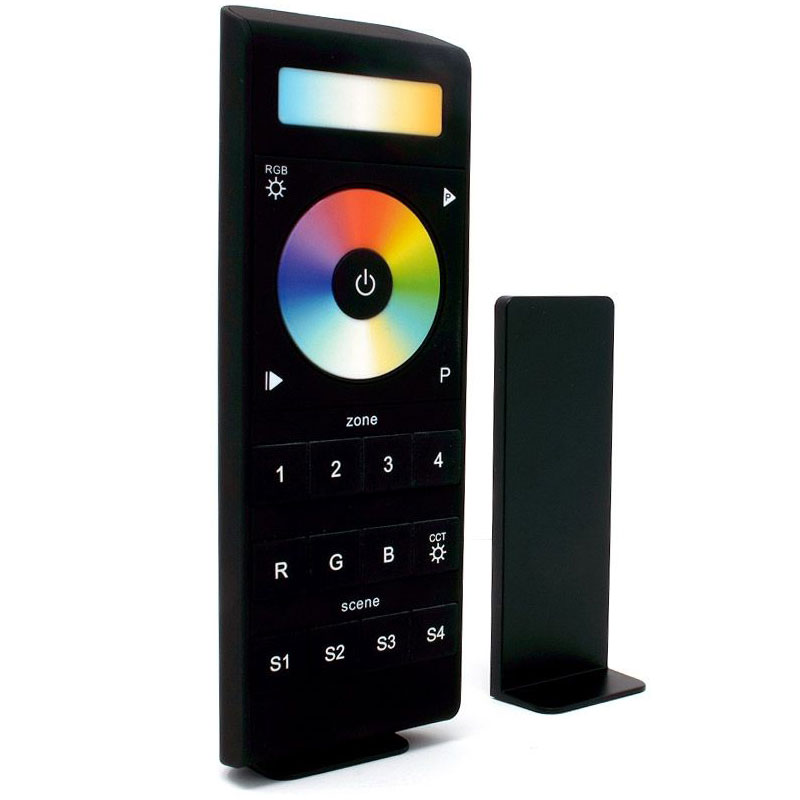

Sunricher RF Five Channel (RGB & CCT) Programmable LED Remote
Featuring touch-sensitive colour control, this 2.4G Programmable RF Control remote handset is available from our range of Sunricher products. The handset can control your RGB and adjustable colour temperature LED lights, making your LED lights remote controllable from up to 20m away. The SR2858Z45C five-channel RF handset is designed to be used with the SR1009EA5C five-channel RF receiver.
With four controllable zones, you can control up to four different areas of lighting. It is also possible to store up to four programmable scenes of lighting in each zone. It is also possible to mix your own custom colour accurately and then store it into a scene for future recall.
Using its high-quality control disk and dimming controls, this RGB LED RF Remote can provide:
Instant colour selection
Colour Dimming
Colour temperature adjustment
Ten pre-set colour modes
Control your LED strip lights with ease by using the buttons to control up to four zones of lighting fixtures together. You can also use the buttons individually for switching each zone of lights on their own.
Controlling colour changing LED lights with our RF solutions will provide you with many high-quality features. Our handsets also enable you to use exciting pre-set programs on your remote control systems such as:
Colour fading by cycling through single colours
Colour pulsing
And many more!
Simply insert three AAA type batteries into the handset to power the controller. The RF control system will work up to 20m away from the paired lighting devices.
Please Note: A line of sight is not needed between the handset and the LED light. Although, walls or obstructions may weaken the signal.
Technical Specification
Product Code: SR2858Z45C
Product Packed: Gift box
Product Type: Controller
Colour: Black
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: Battery Powered
Connectivity: RF
PCB Weight: Not Applicable
Size: 153 x 52 x 19mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
Operation Frequency: 869.5 / 916.5 / 434MHz
Battery Type: 3 x AAA Batteries
Operating Temp: 0-40°C
