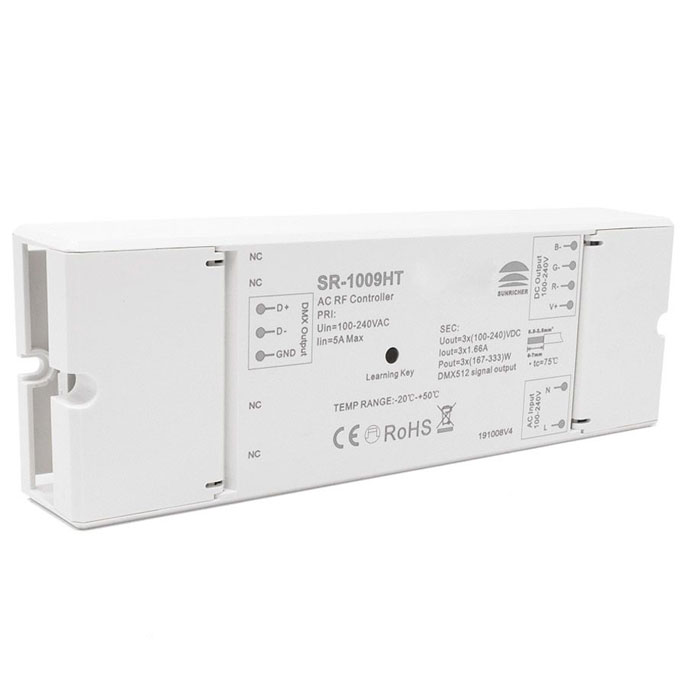

Sunricher RF High Voltage RGB Receiver / Controller
This high-quality RF receiver is ideal for use in the installation industry where mains-powered colour-changing LED tape products are to be installed. This RF LED receiver can be paired to a compatible Sunricher RF handset or wall panel to give full control over your product from up to 20m away.
Mains-powered LED products up to 1.66A per channel can be powered allowing a maximum load of 1kw of RGB lighting to be powered at 240v through a radio frequency (RF) signal.
The innovative DMX512 output signal terminals will also allow other RGB products of various types to be synchronised with the controller by connecting them to a suitable DMX Decoder.
These DMX output terminals also enable the unit to be run as a DMX master, effectively turning the receiver/controller into an RF to DMX512 converter.
This LED remote receiver can be paired with our range of Sunricher remote controllers to control our colour-changing LED strip lights in a single zone. It can also be used in multiple zones when multiple receivers are paired together with a compatible LED controller.
Note: Please refer to the datasheet for full details on this LED Light receiver before installation.
Browse our range of LED strips that can be controlled with this Sunricher RF receiver. Sunricher products also include a range of single colour, RGB & RGBW colour-changing RF receivers. This receiver can be implemented into your home automation system for control through smart home hubs.
Technical Specification
Product Code: SR1009HT
Product Packed: Gift box
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 3 x 1.66a
Input Voltage: 100v - 240v AC
Output Voltage: 100v - 240v AC
Connectivity: RF & WiFi
Size: 170 x 59 x 29mm (L x W x H)
Dimmable: Yes
Wireless Range: Up to 20 metres
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 869.5 / 916.5 / 434MHz & WiFi
Operating Temp: 0-40°C
