Sunricher RF Phase Cut & Push AC Dimmer (SR2501 Series Remotes)

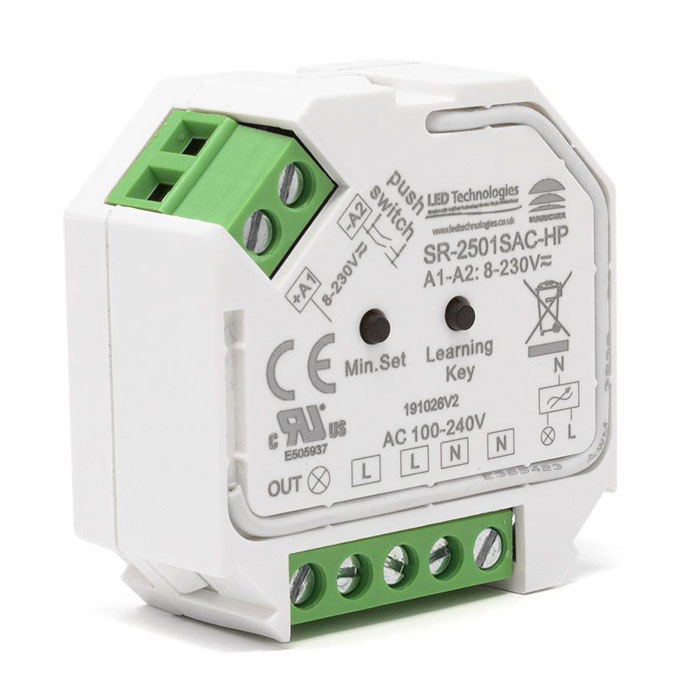

This slim, single-channel RF to Phase-Cut & Push AC Dimmer is available from our Sunricher range of professional RF receiver LED controllers. The RF LED Receiver is an installation-grade product, used in domestic and commercial environments. This includes installations such as hotels, restaurants and retail outlets.
The LED light receiver/switch can be paired to a compatible Sunricher SR2501 Series RF remote controller. Once paired, this switch will then power on/off or dim your single colour mains-powered radio frequency devices.
It supports both resistive and capacitive loads and it is TRIAC and MOSFET dimmable. This receiver switch has an innovative minimum brightness function which is user settable. The RF signal dimmer is a single channel unit with a maximum load of 400w. This product also incorporates optional Push Dimming terminals.
This LED Remote receiver/switch can be used in a single-zone installation or multiple zones with multiple receivers. Control your single-colour LED strip lights with ease by implementing this product into your lighting system.
Browse our range of single-colour LED Tape that can be controlled with this Sunricher RF receiver. Sunricher products also include a range of RGBW colour-changing RF receivers. This swtich can be implemented in to your home automation system for control through smart home hubs.
Technical Specification
Product Code: SR2501SACHP
Product Packed: Gift box
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100v - 240v AC
Output Voltage: 100v - 240v AC
Connectivity: RF
PCB Weight: Not Applicable
Size: 45.5 x 45 x 20.3mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 869.5 /434 / 916.5MHz
Operating Temp: 0-40°C
