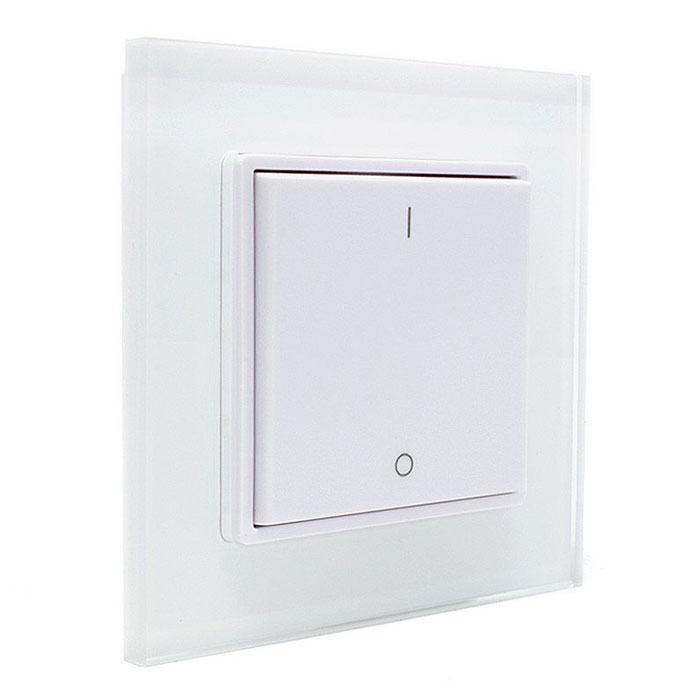

Sunricher RF Single Colour Push Switch RF Wall Panel White (Battery powered)
This single colour, radio frequency remote wall panel is from our range or Sunricher products. It is a high quality RF remote featuring a simple push switch design. Toggling the switch will switch on or off your single colour LED product.
You can dim your LED lighting between 0% - 100% using the control panel. This is achieved by pressing and holding the switch up or down on the LED controller. The wall panel is powered by an internal long life battery. Therefore, it can be fitted almost anywhere with the fixing kit supplied.
This high quality RF remote controller is ideal for installing in the domestic or commercial market. It is highly reliable and a high quality product.
Ready to go out of the box, simply pair the unit with a compatible Sunricher receiver. You are then ready to control your 12v, 24v or 36v single colour LED Lighting products.
Using its high-quality switch control LED light control, this LED remote control panel features:
Smooth Dimmable adjustment of LED strip lights
20m wireless range
Pairing with wireless receivers/ controllers
The transmitter has an attractive glass front panel. It can paired to any number of receivers and operated within 20m of the receiver units. Note: Each receiver can be paired with up to eight controllers.
Technical Specification
Product Code: SR2833K1
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: Battery Powered
Connectivity: RF
PCB Weight: Not Applicable
Size: 86 x 86 x 14mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
Operation Frequency: 868 / 869.5 / 434MHz
Battery Type: 1 x 3V CR2430 button battery
Operating Temp: 0-40°C
