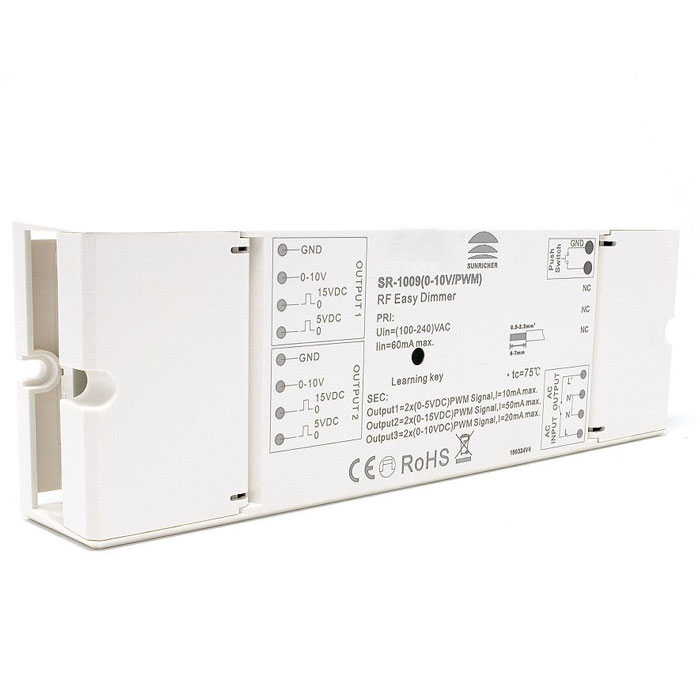

Sunricher RF to 0-10V Converter / PWM Controller
This Sunricher RF to 0-10v RF receiver/converter is a professional quality product suitable for use in domestic and commercial installations such as hotels, restaurants and retail outlets.
The RF LED receivers are simple to pair and can be used with a compatible Sunricher transmitter using an RF Signal. The receiver converts RF (radio frequency) signals from the remote controller to a 0-10v protocol. This will allow you to control your single colour LED lights via a 0-10V LED controller, when paired with this LED light receiver.
The unit is powered by a mains supply from 100v - 240v AC. The converter is compatible with 0-10v Dimmable LED Drivers. Once paired, this LED remote receiver can be used to control your LED Strip lights in a single zone or multiple zones with multiple receivers.
Browse our range of LED tape that can be controlled with this Sunricher RF receiver. Sunricher products also include a range of single colour, RGB & RGBW colour-changing LED RF receivers. This receiver can be implemented into your home automation system for control through smart home hubs.
Technical Specification
Product Code: SR1009010VPWM
Product Packed: Gift box
Product Type: Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 20mA
Input Voltage: 100v - 240v AC
Output Voltage: 100v - 240v AC
Connectivity: RF
PCB Weight: Not Applicable
Size: 170 x 59 x 29 mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Mains Voltage
Operating Temp: 0-40°C
