Sunricher SPI Smart PIxel Flex Controller with OLED Display

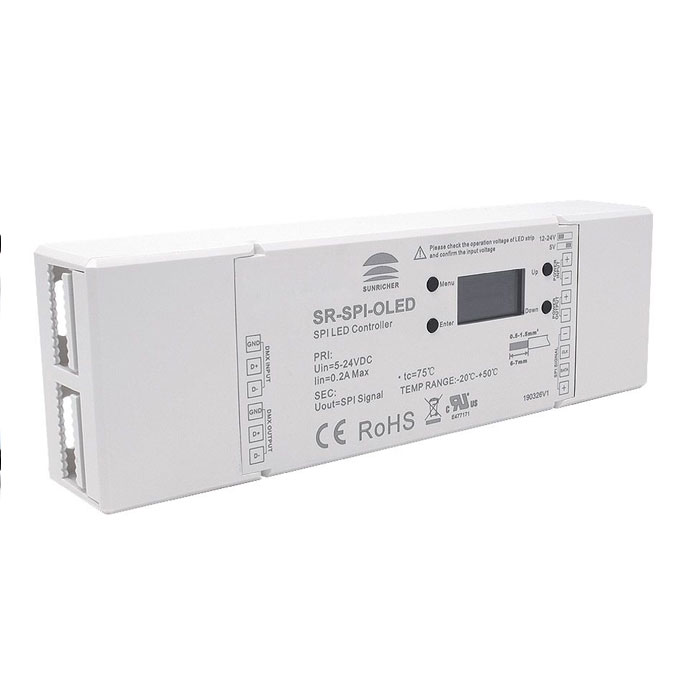

The SRSPIOLEDWIFI RF LED Receiver is a smart LED pixel controller to control digital IC RGB/RGBW LED strip lights with SPI signal.
Designed with an OLED backlit panel, the pixel LED Light receiver allows for easy configuration of most settings. Four push buttons are available for control of the OLED functions.
It supports RF/WiFi mode which can be controlled by RF remotes or by an app installed on smartphones (IOS and Android). This RF receiver also features a DMX mode that can be remotely controlled by DMX consoles and sequencing software.
The radio frequency LED controller is capable of addressing up to 1020 pixels and supports 38 types of driving IC. The number of pixels to be addressed and the IC type that drives your LED lights can be configured via OLED.
7 types of RGB/RGBW colour orders are also configurable
Under RF/WiFi mode, the controller has 35 built-in sequencings, chasing, changing and static colours which can be played with RF remotes and APP
Under DMX mode, it supports a max of 512 decoding channels and is capable of addressing each pixel individually or addressing all pixels with only 3 channels (RGB) or 4 channels (RGBW)
The DMX addresses (channel quantity) can be configurable via an OLED display on the LED remote receiver. When working under DMX mode, the smart controller requires a PC interface DMX console and sequencing software to create colour sequences which meet different requirements.
This RF receiver from Sunricher can be used to control your colour-changing LED lights in a single zone or in multiple zones using multiple receivers.
Browse our range of LED tape that can be controlled with this Sunricher RF receiver. Sunricher products also include a range of single colour, RGB & RGBW colour-changing LED RF receivers. This receiver can be implemented into your home automation system for control through smart home hubs via the RF signal.
Technical Specification
Product Code: SRSPIOLEDWIFI
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 0.2A
Input Voltage: 12v / 24v DC
Output Voltage: 12v / 24v DC
Size: 170 x 53.4 x 28mm
Dimmable: No
LED Type: Not Applicable
Voltage Type: Low Voltage
Operation Frequency: 869.5 / 916.5 / 434MHz
Operating Temp: -20 to +45
