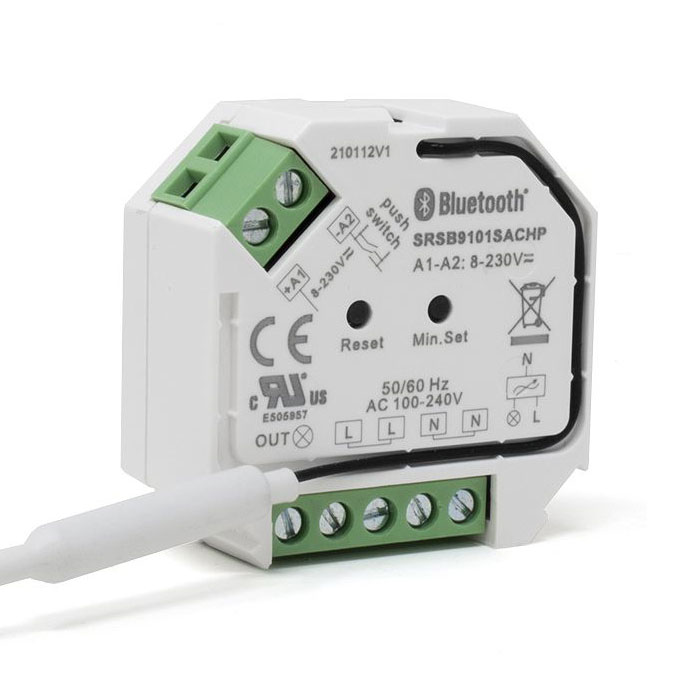

Sunricher SR BUS AC Phase Cut Bluetooth Dimmer
This compact Phase Cut Dimmer switch is from the Sunricher range. It is designed to be integrated with your Bluetooth mesh network.
The bluetooth LED dimmer switch allows you to control and dim your LED lamps. Phase-cut dimming works by controlling the AC power supplied to your lighting products, and therefore adjusts the electric current to enable the user to dim the light.
The wireless dimmer switch for LED lights is easy to install. The smart light switch can either be controlled from your phone by simply downloading the app from the appropriate app store, or through universal RF+bluetooth remotes. This enables you to control all of your devices without the need for a hub or gateway.
This LED AC dimmer product is a safe and reliable solution for light control. It can be used in a wide range of places, such as bedrooms, living rooms or even offices as it has a wireless range of 30m. The switch can be used with a range of products such as dimmable LED strip lights.
The switch allows full dimming between 0% and 100% giving you effortless control over your lighting.
This Sunrichher SR BUS system allows you to control signal to jump from one node to the other. This extends the control network much more than a standard RF system around your home.
The LED dimmer control needs a power supply of 100v or 240v. It has a maximum 400w output.
Additional products can be added to this remote control light switch, such as handsets and receivers to extend your bluetooth mesh network.
Technical Specification
Product Code: SRSB9101SACHP
Product Packed: Gift box
Product Type: Dimmer
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 1.8A
Input Voltage: 100v - 240v AC
Connectivity: Bluetooth
PCB Weight: Not Applicable
Size: 45.5 x 45 x 20.3mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Operating Temp: 0-40°C
