Sunricher Touch Sensor Mini PWM Dimmer

(5 Reviews) | Write a review

SKU: SBL-SR2901S

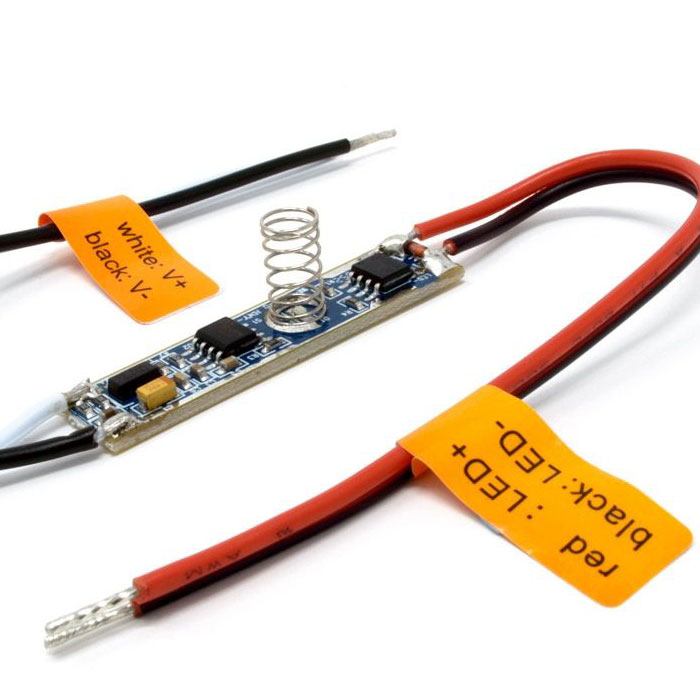

With a constant voltage PWM output this mini dimmer will control your single colour 12v or 24v LED product up to a maximum load of 5A. The dimmer is supplied on a circuit board with wires tails for input and output connections and is designed for professional installation only. As there is no outer case the mini dimmer should be mounted into extrusion or similar profile.
To operate simply touch the control disc once to toggle on and off your lighting or touch and hold to adjust the brightness.

Technical Specification
Product Code:   SR2901S
Product Packed:   Gift box
Product Type:   Dimmer
IP Rating:   IP20 Non-Waterproof
Guarantee Period:   5 Years
Wattage:   500w
Current:   5A
Input Voltage:   12v / 24v DC
Output Voltage:   12v / 24v DC
Size:   42 x 10 x 10mm
Dimmable:   Yes
Voltage Type:   Constant Voltage
Relative Humidity:   8% to 80%
Operating Temp:   0-40°C
