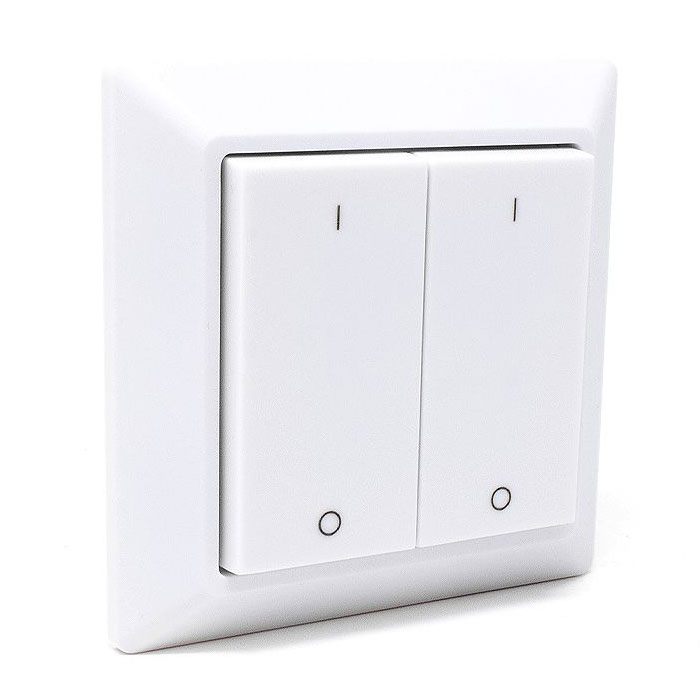

Sunricher ZIGBEE 2 Zone Single Colour Kinetic Wall Panel
This Kinetic wall mounted LED light controller is from Sunricher. It is a wireless LED controller that will communicate with a wide variety of ZIGBEE compatible systems. It is designed to control your single colour LED lighting products over two zones. It is a highly reliable and a high quality product.
This innovative ZIGBEE controller does not require any connections for power. It has an integral micro generator that produces a small electrical current that powers the built in transmitter.
Simply pair with your ZIGBEE receiver to control your lights without need of any connecting cables. This LED controller can be mounted just about anywhere. It is designed to be integrated into your ZIGBEE home automation network.
Two individual zones can be controlled by simply pushing the appropriate button. To dim your LED lighting between 0% - 100%, simply push and hold the appropriate switch.
Using its high-quality touch control LED light control, this LED remote control panel features:
Smooth Dimmable adjustment of LED strip lights
30m wireless range
Pairing with wireless receivers/ controllers
Bluetooth integration
Home network integration
ZIGBEE is a wireless protocol that forms a MESH network which is a group of products that all communicate with each other so that the wireless signal can find the most efficient route around the network.
This LED wall mounted remote controller is has a slim compact design that is ideal for both domestic and commercial applications. Ideal for lighting that requires wireless control through bluetooth or smart home network integration.
Technical Specification
Product Code: SRZGP2801K4DIMG2
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: Kinetic - Self Powered
Connectivity: ZIGBEE protocols
PCB Weight: Not Applicable
Size: 80.5 x 80.5 x 14.7mm
CRI Rating (greater than): CRI >80
Dimmable: No
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 30 metres
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
Operation Frequency: 2.4GHz
Operating Temp: 0-40°C
