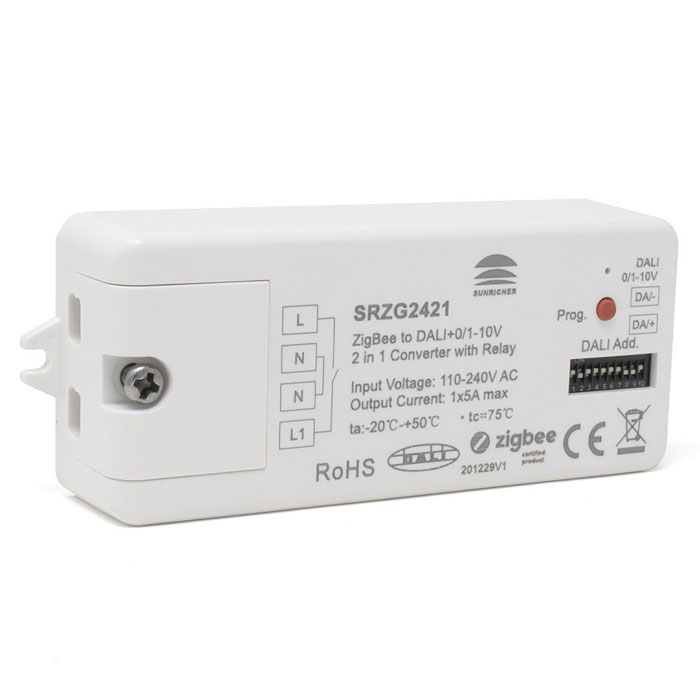

Sunricher ZIGBEE Converter from ZIGBEE to DALI or 0-10v
This ZIGBEE to DALI converter is available from the Sunricher range. It is designed to be integrated into your ZIGBEE home automation network. It enables you to integrate your existing DALI or 0-10V products into your home network without having to replace the products.
The LED light receiver can work with standard DALI for dimming, DALI DT6 & DT8 including DALI DT8 XY coordinates & DALI DT8 RGBW settings. Easily adjust the Dip switches to select the appropriate mode.
To control 0-10v devices, adjust the dip switches to the 0-10V protocols. There is a simple program key that enables network pairing as well as factory reset of the device.
It can be operated with any ZIGBEE certified device such has ZIGBEE remotes or wall panels. This ZIGBEE to DALI device enables you to wirelessly switch of a range of LED lighting such as RGB LED Tape / LED strip lights.
The ZIGBEE controller supports "touch-link" commissioning and "find and bind" mode. This enables you to pair with other ZIGBEE lighting devices after it has been added to the same ZIGBEE network. It also supports Over the Air (OTA) updates to ensure you will always have the latest software release.
The ZIGBEE to DALI or 0-10V converter requires 110v or 240v power supply to operate. Then pair to your ZIBGEE network either through a ZIGBEE Hub or independent of a hub to operate.
This is the perfect installation for your smart home. You can then achieve LED control wirelessly through your phone or home automation network.
Technical Specification
Product Code: SRZG2421
Product Packed: Gift box
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage:100v - 240v AC
Connectivity: ZIGBEE protocols
Size: 80 x 36 x 20.5mm
Dimmable: No
Wireless Range: Up to 30 metres
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
Operation Frequency: 2.4GHz
Operating Temp: 0-40°C
