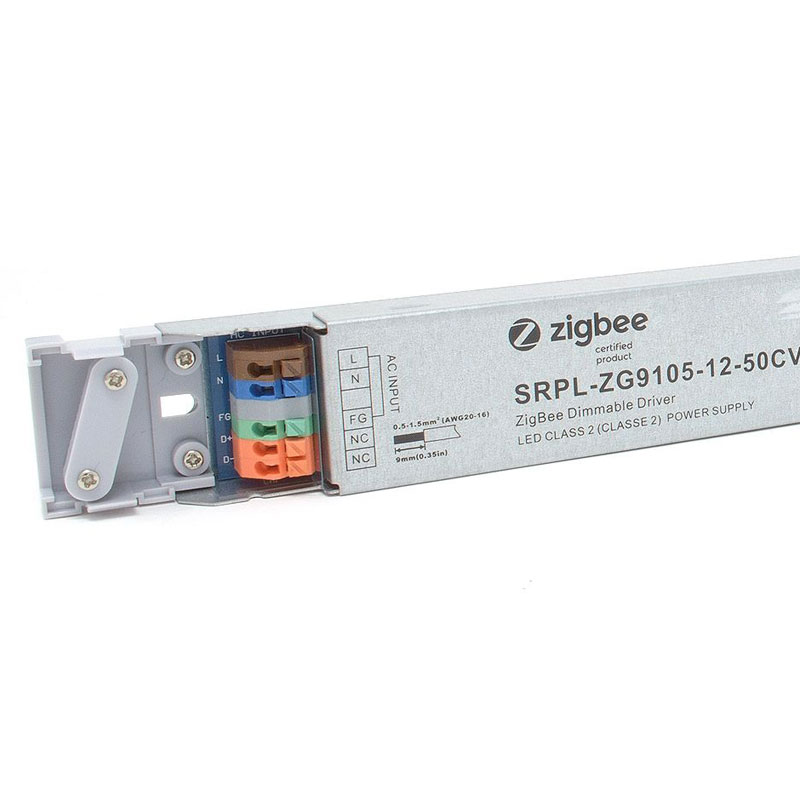

Sunricher ZIGBEE Dual Channel (CCT) 12v 50w Slim Style Constant Voltage LED Driver
This high quality ZIGBEE dual colour Constant Voltage driver is from the Sunricher range. It uses the latest ZIGBEE 3.0 protocol enabling you to control your dual colour CCT LED lights.
This ZIGBEE LED driver is the perfect domestic or commercial installation. It can be used in a wide range of areas, such as bedrooms, hallways or offices to extend your ZIGBEE network.
The ZIGBEE driver enables wireless control over colour temperature of your CCT Led lighting.
The LED light controller can be operated with any ZIGBEE device such has ZIGBEE remotes or wall panels. This ZIGBEE controller enables you to wirelessly control a range of LED lighting. The ZIGBEE receiver can control products such as LED Tape / LED strip lights.
The ZIGBEE constant voltage controller supports "touchlink" commissioning and "find and bind" mode. This enables you to pair with other ZIGBEE lighting devices after it has been added to the same ZIGBEE network. You can also "find and bind" a Sunricher ZIGBEE remote control handset or wall panel directly to the controller without a ZIGBEE hub.
The ZIBEE controller requires 100v -240v AC power supply to operate. Then pair to your ZIBGEE network either through a ZIGBEE Hub or independent of a hub to operate.
This is the perfect installation for your smart home. You can then achieve LED control wirelessly through your phone or home automation network. To ensure a high safety performance worldwide the driver is UL, ENEC and TUV certified.
Technical Specification
Product Code: SRPLZG91051250CVT
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Driver
Colour: Brushed Aluminium
Guarantee Period: 5 Years
Wattage: 50w
Current: 4A
Input Voltage: 100v - 240v AC
Output Voltage: 12v DC
Connectivity: ZIGBEE protocols
PCB Weight: Not Applicable
Size: 486 x 30.7 x 20.9mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 30 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Operating Temp: -20 to +45
