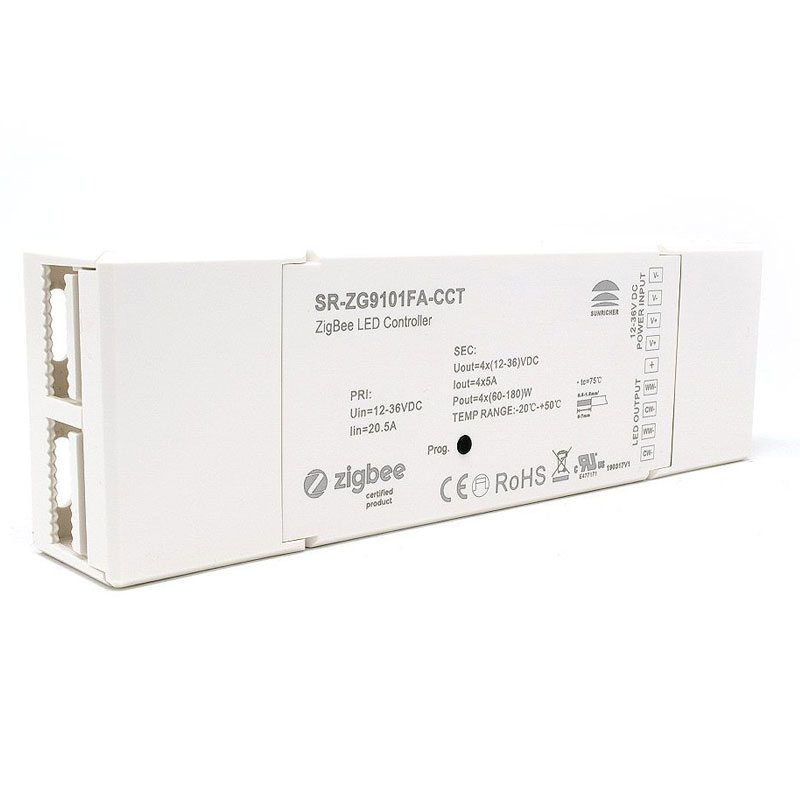

Sunricher ZIGBEE Dual Colour (CCT) Constant Voltage Controller
This high quality ZIGBEE Dual colour Constant Voltage controller is from the Sunricher range. It uses the latest ZIGBEE 3.0 protocol enabling you to control your dual colour LED Lighting products.
This is the perfect domestic or commercial installation. It can be used in a wide range of areas, such as bedrooms, hallways or offices to extend your ZIGBEE network.
The LED light controller can be operated with any ZIGBEE device such has ZIGBEE remotes or wall panels. This ZIGBEE controller enables you to wirelessly control the colour temperature of a range of LED lighting. The ZIGBEE receiver can control products such as dual colour CCT LED Tape / LED strip lights.
The ZIGBEE controller supports "touch-link" commissioning and "find and bind" mode. This enables you to pair with other ZIGBEE lighting devices after it has been added to the same ZIGBEE network. You can also "find and bind" a Sunricher ZIGBEE remote control handset or wall panel directly to the controller without a ZIGBEE hub.
The ZIBEE controller requires 12v, 14v, or 36v power supply to operate. Then pair to your ZIBGEE network either through a ZIGBEE Hub or independent of a hub to operate.
This is the perfect installation for your smart home. You can then achieve LED control wirelessly through your phone or home automation network.
Technical Specification
Product Code: SRZG9101FACCT
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 1 x 240w - 720w
Current: 4 x 5A / Channel
Input Voltage: 12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: ZIGBEE protocols
Size: 170 x 53.4 x 28mm
Dimmable: Yes
Wireless Range: Up to 30 metres
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 2.4GHz
Operating Temp: 0-40°C
