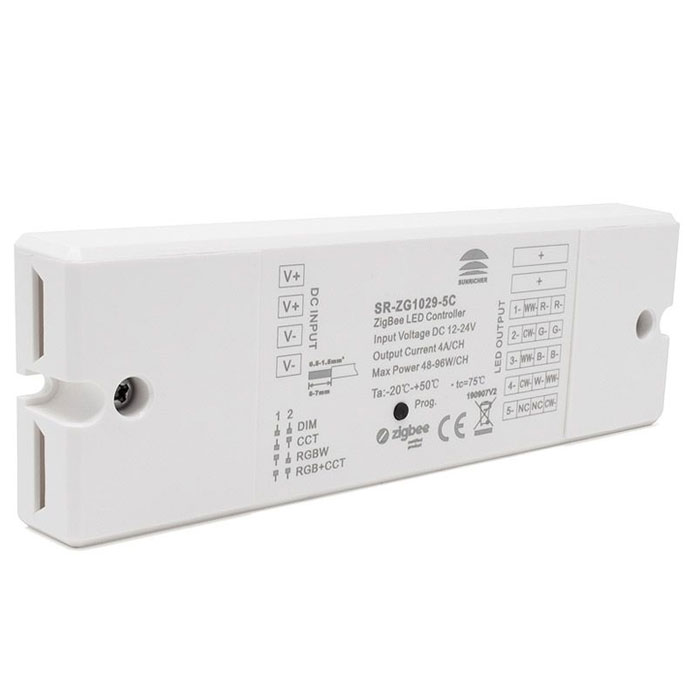

Sunricher ZIGBEE Five Channel RGB & CCT 4 in 1 Constant voltage Receiver
This high quality 4 in 1 ZIGBEE 5 channel Constant Voltage controller is from the Sunricher range. It uses the latest ZIGBEE 3.0 protocol enabling you to control your RGBW lights.
This is the perfect domestic or commercial installation. It can be used in a wide range of areas, such as bedrooms, hallways or offices to extend your ZIGBEE network.
This ZIGBEE controller is a 4 in 1 unit which means that it can be set to single colour, dual colour (CCT), RGB, RGBW and RGB & CCT modes using the integral dip switches. This makes it an all round units capable of controlling various types of lighting by ZIGBEE protocols.
The ZIGBEE receiver enables control over your RGB channels (1, 2 & 3). Channels 4 & 5 are for colour temperature adjustable products or five channel LED products which have RGB + CW & WW. Channels 1, 2 & 3 use the RGB commands, channels 4 & 5 use the CCT commands.
The LED light controller can be operated with any ZIGBEE device such has ZIGBEE remotes or wall panels. This ZIGBEE controller enables you to wirelessly control a range of LED lighting. The ZIGBEE receiver can control products such as RGBW LED Tape / LED strip lights.
The ZIGBEE controller supports "touch-link" commissioning and "find and bind" mode. This enables you to pair with other ZIGBEE lighting devices after it has been added to the same ZIGBEE network. You can also "find and bind" a Sunricher ZIGBEE remote control handset or wall panel directly to the controller without a ZIGBEE hub.
The ZIBEE controller requires 12v, 14v, or 36v power supply to operate. Then pair to your ZIBGEE network either through a ZIGBEE Hub or independent of a hub to operate.
This is the perfect installation for your smart home. You can then achieve LED control wirelessly through your phone or home automation network.
Technical Specification
Product Code: SRZG10295C
Product Packed: Gift box
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 5 X 4A
Input Voltage: 12v / 24v DC
Output Voltage: 12v / 24v DC
Connectivity: ZIGBEE protocols
PCB Weight: Not Applicable
Size: 145 x 46.5 x 16mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 30 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 2.4GHz
Operating Temp: -20 to +45
