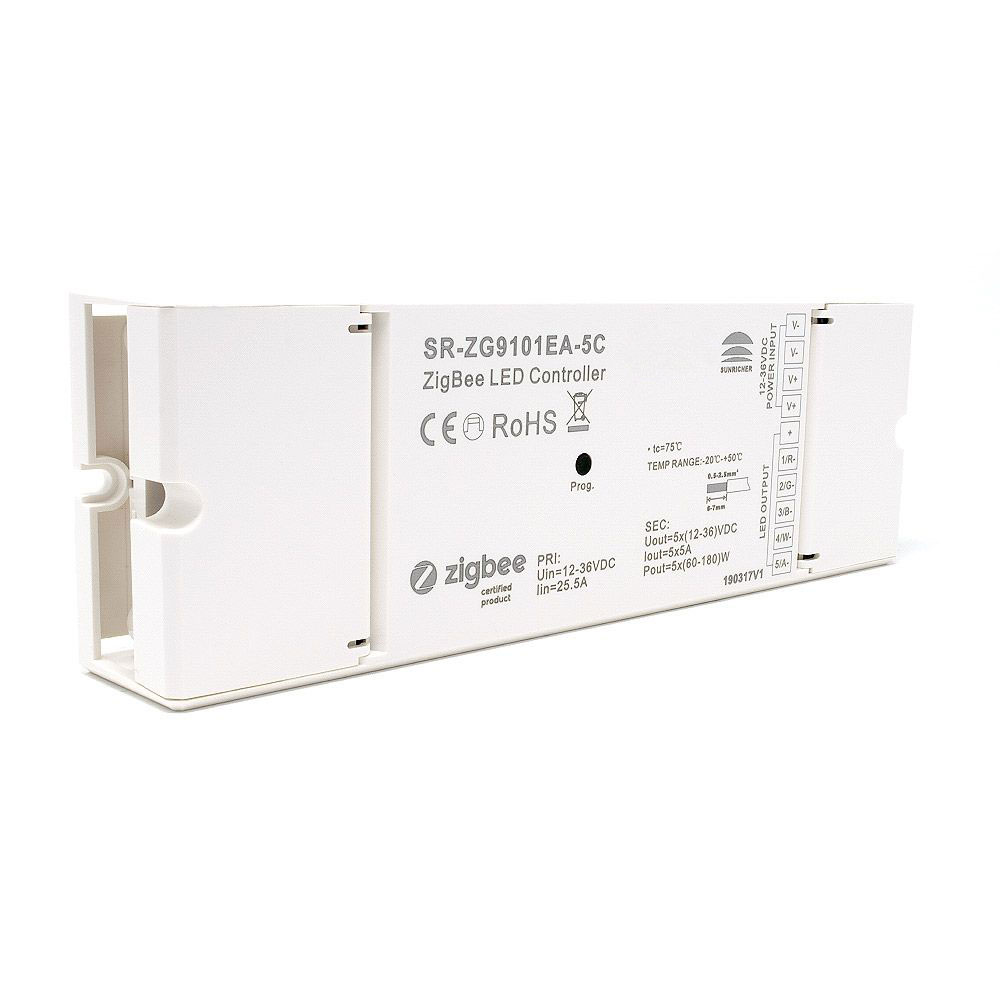

Sunricher ZIGBEE Five Channel RGB & CCT Constant Voltage Receiver / Controller
This high quality ZIGBEE 5 channel Constant Voltage controller is from the Sunricher range. It uses the latest ZIGBEE 3.0 protocol enabling you to control your RGBW lights.
This is the perfect domestic or commercial installation. It can be used in a wide range of areas, such as bedrooms, hallways or offices to extend your ZIGBEE network.
The ZIGBEE receiver enables control over your RGB channels (1, 2 & 3). Channels 4 & 5 are for colour temperature adjustable products or five channel LED products which have RGB + CW & WW. Channels 1, 2 & 3 use the RGB commands, channels 4 & 5 use the CCT commands.
The LED light controller can be operated with any ZIGBEE device such has ZIGBEE remotes or wall panels. This ZIGBEE controller enables you to wirelessly control a range of LED lighting. The ZIGBEE receiver can control products such as RGBW LED Tape / LED strip lights.
The ZIGBEE controller supports "touch-link" commissioning and "find and bind" mode. This enables you to pair with other ZIGBEE lighting devices after it has been added to the same ZIGBEE network. You can also "find and bind" a Sunricher ZIGBEE remote control handset or wall panel directly to the controller without a ZIGBEE hub.
The ZIBEE controller requires 12v, 14v, or 36v power supply to operate. Then pair to your ZIBGEE network either through a ZIGBEE Hub or independent of a hub to operate.
This is the perfect installation for your smart home. You can then achieve LED control wirelessly through your phone or home automation network.
Technical Specification
Product Code: SRZG9101EA5C
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 5 X 60W - 180W
Current: 5 x 5A
Input Voltage: 12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: ZIGBEE protocols
Size: 170 x 59 x 29mm
Dimmable: Yes
Wireless Range: Up to 30 metres
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 2.4GHz
Operating Temp: 0-40°C
