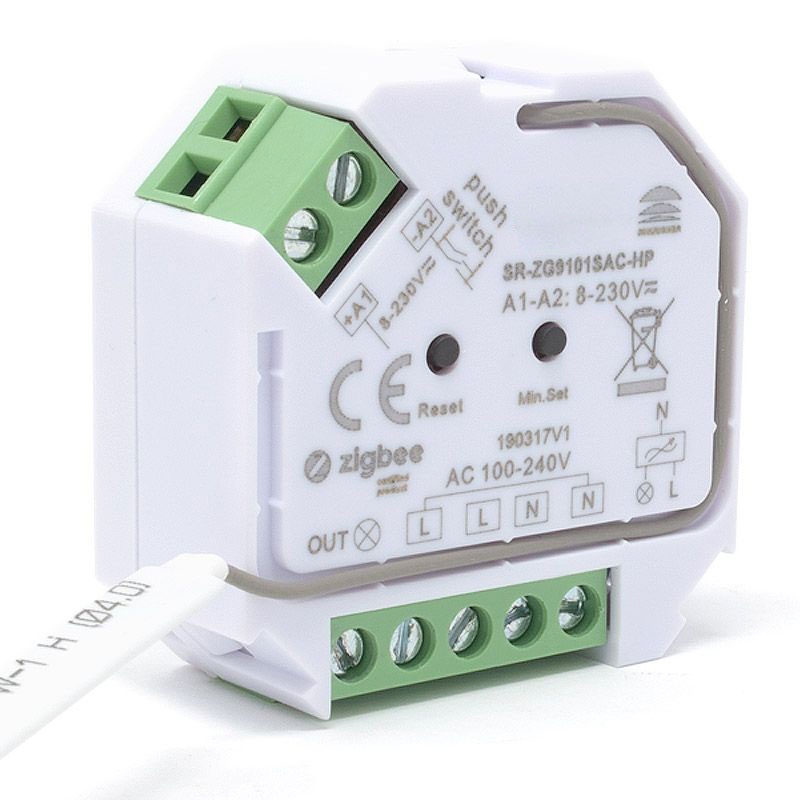

Sunricher ZIGBEE In-Wall Mountable AC Phase Cut Dimmer
This slim, compact ZIGBEE switch dimmer is available from the Sunricher range.
The ZIGBEE light switch is ideal for domestic and commercial installations in a range of areas such as living rooms, bedrooms and retail outlets. It is highly reliable and a high quality product perfect for controlling lights.
The ZIGBEE receiver is wall mountable and the perfect solution to turning off the lights wirelessly or dimming your lights. This can be achieved from your phone by downloading the app from the appropriate app store.
The ZIGBEE wall switch is designed to be integrated into your ZIGBEE home network. This is ideal for your smart home. It is compatible with your home automation network, such as Amazon Alexa or Philips hue.
It can be operated with any ZIGBEE certified device. All non-battery operated nodes within the network will act as repeaters to increase the reliability of the ZIGBEE network. The Dimmer also has a "Push Dim" facility so can work either with ZIGBEE or with a connected "Push" type dimmer.
The ZIGBEE dimmer supports "touch-link" commissioning and "find and bind" mode. This enables you to pair with other ZIGBEE lighting devices after it has been added to the same ZIGBEE network.
This smart switch enables you to wirelessly switch of a range of LED lighting such as single colour dimmable LED strip lights. It is also compatible with low voltage halogen lights with electronic transformers.
This wall mounted smart light switch need a 100v or 240v power supply.
Technical Specification
Product Code: SRZG9101SACHP
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 1.5A
Input Voltage: 100v - 240v AC
Output Voltage: 100v - 240v AC
Connectivity: ZIGBEE protocols
PCB Weight: Not Applicable
Size: 45.5 x 45 x 20.3mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 30 metres
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
Operation Frequency: 2.4GHz
Operating Temp: 0-40°C
