This ZIGBEE wall controller is from the Sunricher range. It is designed to control 1 group of universal RGBW colour ZIGBEE devices.
These are ideal installations in the domestic and commercial markets. It is suitable for a range of areas such as bedroom, living rooms or even offices. It is a highly reliable and a high quality product perfect for controlling your ZIGBEE network.
The ZIGBEE lighting control controls 1 zone which can control a maximum of 30 binded lighting devices. It supports "touch-link" commissioning and "find and bind" mode to pair with other ZIGBEE lighting devices after added to the same ZIGBEE network.
Instant colour selection is available using the touch sensitive disc on the LED ZIGBEE controller. It is possible to adjust the individual brightness levels of all four channels individually. You can also instantly achieve a white mix by selecting the appropriate button.
This is compatible with a range of Quad colour LED lighting products such as LED strip lights.
The ZIGBEE remote control features 4 programmable scenes. Your unique lighting settings can be stored and effortlessly recalled at the touch of a button.
This ZIGBEE lighting controller offers ten built in light effects. Along side this is a pause function, giving you easy and effortless control over your lighting fixtures.
The ZIGBEE controller is the perfect addition to your smart home as ZIGBEE networks are designed to be integrated with your home automation system.
The wall panel requires a 100v or 240v AC power supply and must be used in conjunction with a ZIGBEE receiver.

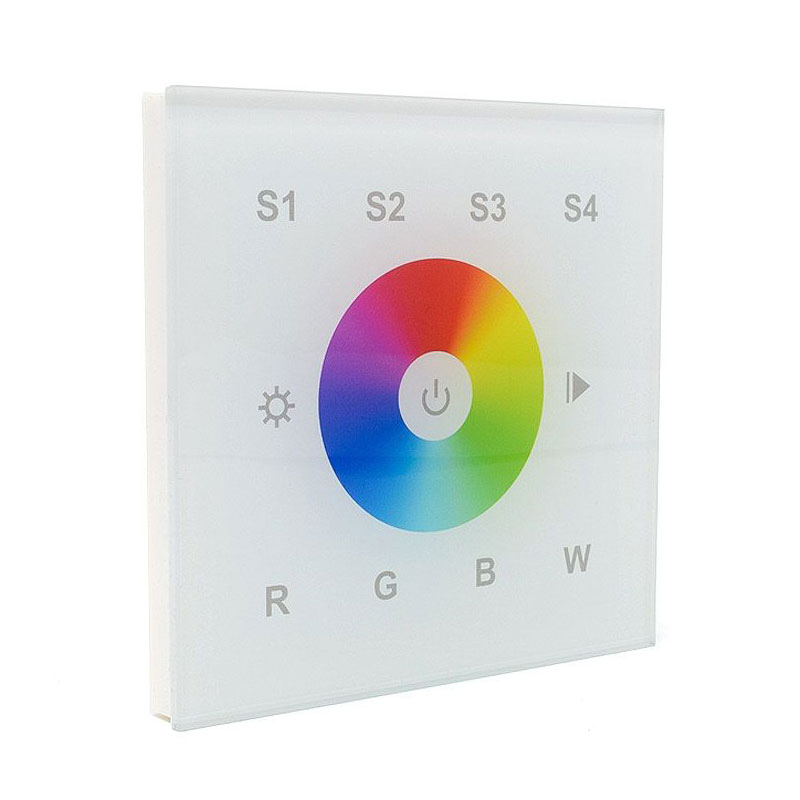

The wall mounted control panel has an attractive white finish touch sensitive glass panel.

Technical Specification
Product Code:    SRZG9001TRGBWWH
Product Packed:    Gift box
Product Type:    Controller
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    100v - 240v AC
Connectivity:    ZIGBEE protocols
PCB Weight:    Not Applicable
Size:    86 x 86 x 29.1mm
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
LED Type:    Not Applicable
Average LED life Hrs:    30,000
Colour Temperature Variation:    IP20 No
Power Factor >:    Not Applicable
Wireless Range:    Up to 30 metres
Continuous Operation:    Not suitable for 24/7 continuous use
Voltage Type:    Mains Voltage
Relative Humidity:    8% to 80%
Operation Frequency:    2.4GHz
Operating Temp:    0-40°C
