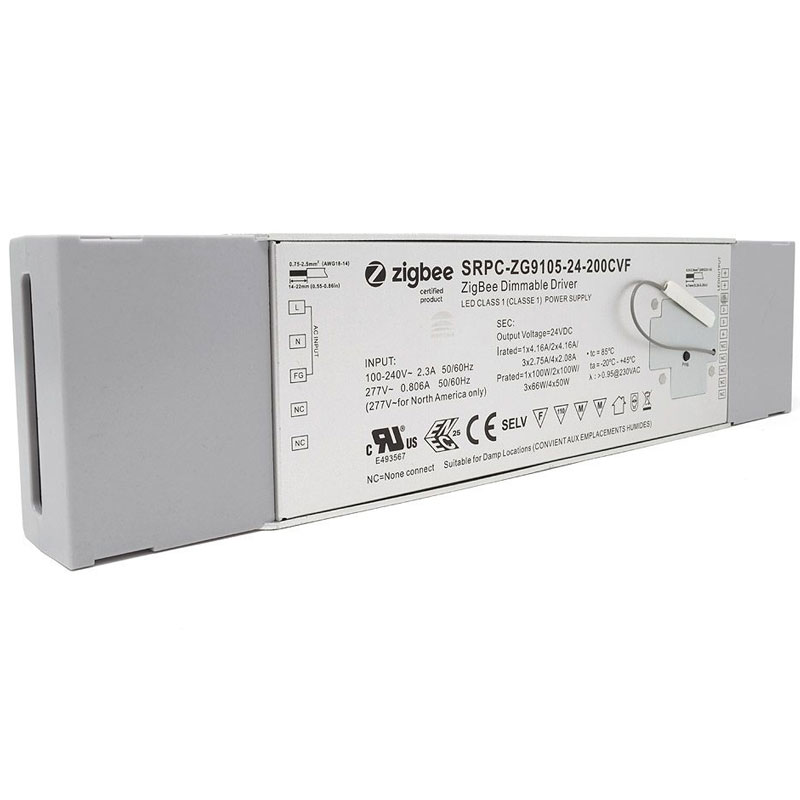

Sunricher ZIGBEE RGBW Four Channel Professional 24v 200w ZIGBEE Power Supply
This high quality ZIGBEE four channel Constant Voltage driver is from the Sunricher range. It uses the latest ZIGBEE 3.0 protocol enabling you to control your quad colour LED lights.
This ZIGBEE LED driver is the perfect domestic or commercial installation. It can be used in a wide range of areas, such as bedrooms, hallways or offices to extend your ZIGBEE network.
This ZIGBEE receiver enables control over your RGB channels, the W channel uses the CCT command.
The LED light controller can be operated with any ZIGBEE device such has ZIGBEE remotes or wall panels. This ZIGBEE controller enables you to wirelessly control a range of LED lighting. The ZIGBEE receiver can control products such as quad colour LED Tape / LED strip lights.
The ZIGBEE constant voltage controller supports "touchlink" commissioning and "find and bind" mode. This enables you to pair with other ZIGBEE lighting devices after it has been added to the same ZIGBEE network. You can also "find and bind" a Sunricher ZIGBEE remote control handset or wall panel directly to the controller without a ZIGBEE hub.
The ZIBEE controller requires 100v -240v AC power supply to operate. Then pair to your ZIBGEE network either through a ZIGBEE Hub or independent of a hub to operate.
This is the perfect installation for your smart home. You can then achieve LED control wirelessly through your phone or home automation network. To ensure a high safety performance worldwide the driver is UL, ENEC and TUV certified.
Technical Specification
Product Code: SRPCZG910524200CVF
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Driver
Colour: Brushed Aluminium
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 200w
Current: 4 x 2.07A
Input Voltage: 100v - 240v AC
Output Voltage: 24v DC
Connectivity: ZIGBEE protocols
PCB Weight: Not Applicable
Size: 330 x 79 x 39mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: 95
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Relative Humidity: 8% - 80%
Operation Frequency: 2.4Ghz
Operating Temp: -20 to +45
