    Sunricher ZIGBEE Single Colour 1 Group 4 Scene Wall Panel White (Mains voltage)

      (1 Reviews) | Write a review
    SKU: SBL-SRZG9001TDIMWH
    Discontinued
    Starting at: $109.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This ZIGBEE wall controller is from the SUNRICHER range. It is designed to control 1 group of universal single colour ZIGBEE devices.
    These are ideal installations in the domestic and commercial markets, suitable for a range of areas such as bedroom, living rooms or even offices. It is a highly reliable and high quality product perfect for controlling your ZIGBEE network.
    The ZIGBEE lighting control controls one zone which can control a maximum of 30 binded lighting devices. It supports "touch-link" commissioning and "find and bind" mode to pair with other ZIGBEE lighting devices after added to the same ZIGBEE network.
    The wall mounted control panel allows you to effortlessly control the brightness using the 4 buttons located at the top of the ZIGBEE controller. It enables you to switch you LED lighting on or off using the ON/OFF button. It also allows you to choose from 25%, 50%, 75% and 100% brightness. The touch sensitive disc allows you smooth control over the light intensity by running your finger over the disc.
    This is compatible with a range of single colour LED lighting products such as LED strip lights.
    The ZIGBEE remote control features 4 programmable scenes. Your unique lighting settings can be effortlessly recalled at the touch of a button.
    The wall panel is the perfect addition to your smart home as ZIGBEE networks are designed to be integrated with your home automation system.
    The wall panel requires a 100v or 240v AC power supply and must be used in conjunction with a ZIGBEE receiver.

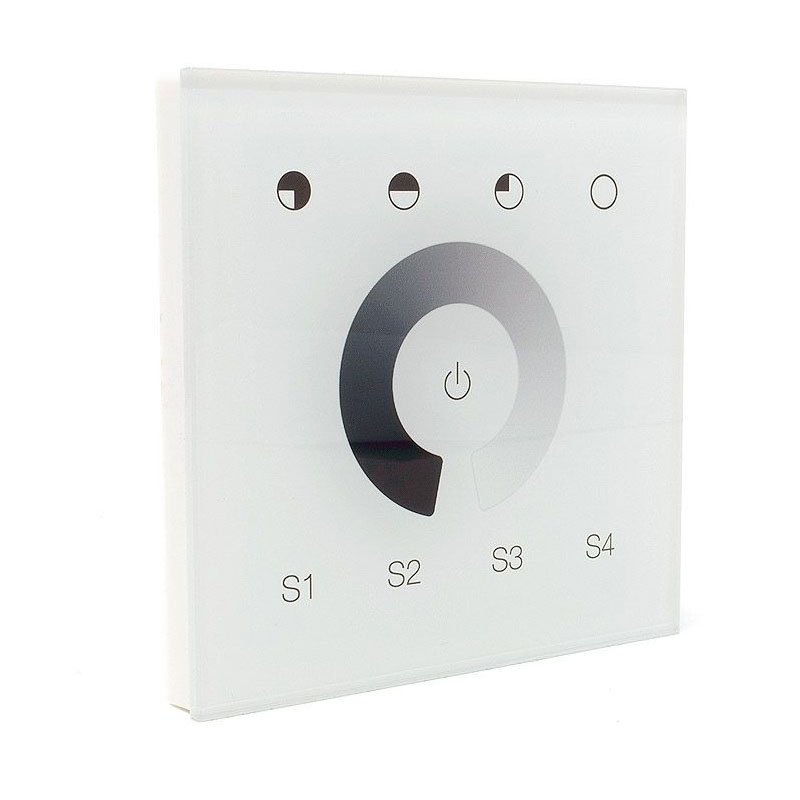

    The wall mounted LED controller has an attractive white finish touch sensitive surface


    Technical Specification
    Product Code:    SRZG9001TDIMWH
    Product Packed:    Gift box
    Product Type:    Controller
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    100v - 240v AC
    Connectivity:    ZIGBEE protocols
    PCB Weight:    Not Applicable
    Size:    86 x 86 x 29.1mm
    CRI Rating (greater than):    CRI >80
    Dimmable:    Yes
    LED Type:    Not Applicable
    Average LED life Hrs:    30,000
    Colour Temperature Variation:    IP20 No
    Power Factor >:    Not Applicable
    Wireless Range:    Up to 30 metres
    Continuous Operation:    Not suitable for 24/7 continuous use
    Voltage Type:    Mains Voltage
    Relative Humidity:    8% to 80%
    Operation Frequency:    2.4GHz
    Operating Temp:    0-40°C
