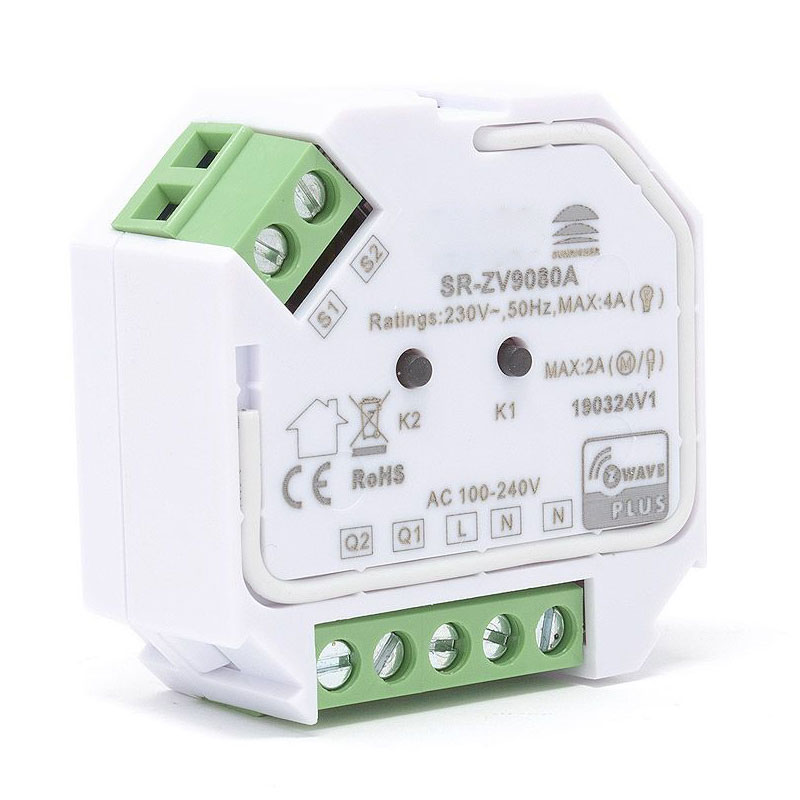

Sunricher Z-Wave Curtain Motor Controller
This Z wave receiver is from the Sunricher range. It is designed to be integrated into your Z wave network. It is a high quality product and is highly reliable.
The Z wave led controller is ideal for commercial and domestic markets. It can be installed in a range of spaces such as hotels, offices and your home.
This home controller is a universal Z wave plus compatible electric motor controller. It allows for controlling motors fitted to roller blinds and curtains powered by a single AC motor. The unit will control resistive, capacitive and inductive loads, it can be used to switch mains powered lighting products.
The LED light controller can be used with a range of LED products such as single coloured LED Tape / LED strip lights or Neon flex. The Z wave light switch will allow you to switch your main powered LED lights on or off remotely.
The Z wave switch can be controlled wirelessly through any certified Z wave device as part of a network or by connected switches. In addition, it is equipped with power metering and over current protection, providing an extension to your Z wave network.
This is the perfect installation for your smart home. Z wave Mesh networks are designed to be integrated into your home automation network. You can then effortlessly remotely control your lighting through smart home devices.
The unit requires a 100v or 240v AC input and has the same output voltage.
Technical Specification
Product Code: SRZV9080A
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 1.2A Max
Input Voltage: 100v - 240v AC
Output Voltage: 100v - 240v AC
Connectivity: Z Wave protocols
Size :45.5 x 45 x 20.3mm
Dimmable: No
Wireless Range: Up to 40 metres
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
SDK: 6.71.03
Routing: Yes
FLiRS: No
Explorer Frame Support: Yes
Operation Frequency: 868.42 MHz
Operating Temp: 0-40°C
