Sunricher Z-Wave Dual Colour (CCT) 1 Group Panel White (Mains voltage)
This touch sensitive Z wave wall panel is from the Sunricher range. This wall mounted control panel is designed to work with Z-Wave certified devices. It is also security enabled Z-wave plus device that can activate various scene gateways.
The Z-wave LED controller can control other devices however cannot act as a Z-wave network primary or secondary controller. A security enabled controller is required to take full advantage of all the functions on the wall panel. The wall panel also supports the "Over The Air" (OTA) feature for any firmware updates as they become available.
This control panel is suitable for commercial and domestic use. It can be used in a variety of area such as living rooms, bedrooms or even offices. It is highly reliable and a high quality product perfect for controlling your Z-wave lighting.
The wall panel allows effortless control over your Z-wave devices. It can turn your LED lighting on or off using the ON/OFF key. You can also achieve smooth dimming using either using the buttons that have preset brightness setting (25%, 50%, 75% and 100%) or the brightness buttons that allow smooth dimming. The control panel enables you to adjust the colour temperature using the touch sensitive disc.
The wall controller features 4 programmable scenes. This enables you to save your unique setting to and instantly recall at the touch of a button.
It is compatible with a range LED lighting products such as dual colour LED strip lights.
Z-Wave is a wireless protocol that forms a MESH network. This is a group of products that all communicate with each other. The wireless signal can find the most efficient route around the network. Z-Wave certified devices and all non‐battery operated "nodes" within the network will also act as repeaters to increase the reliability and range of the Z-Wave network.
The Z-wave controller is the perfect addition to your smart home as Z-wave networks are designed to be integrated with your home automation system.
The wall panel requires a 100v or 240v AC power supply.

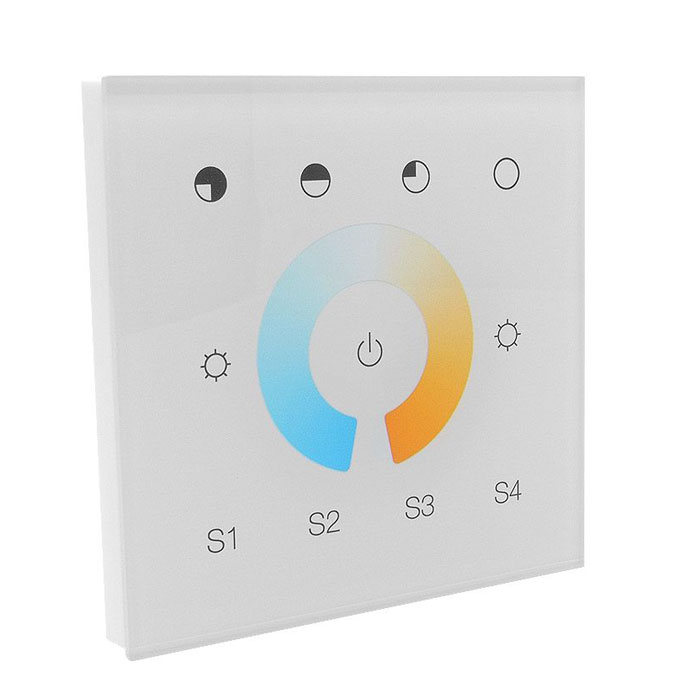

The wall mounted light switch has an attractive white touch sensitive panel.
Technical Specification
Product Code: SRZV9001TCCTWH
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 0.50w
Input Voltage: 100v - 240v AC
Connectivity: Z Wave protocols
PCB Weight: Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 40 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
SDK: 6.71.01
Routing: Yes
FLiRS: No
Explorer Frame Support: Yes
Operation Frequency: 868.42 MHz
Operating Temp: 0-40°C
