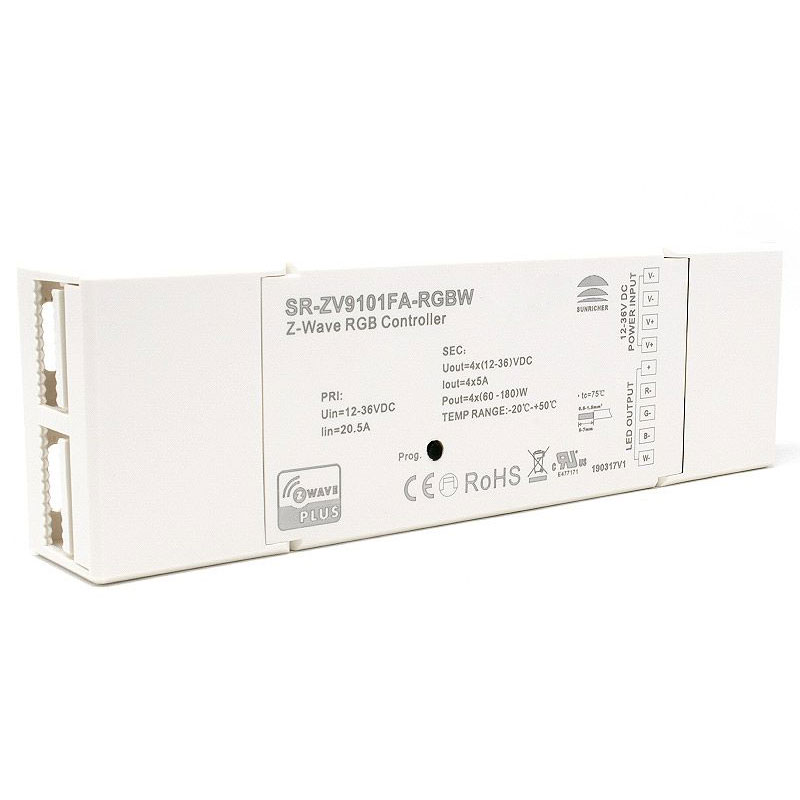

Sunricher Z-Wave Four Channel RGBW Receiver
This Z wave RGBW receiver is from the Sunricher range. The Z wave device is a is a security enabled Z-Wave Plus device. It is designed to work with a range of mains powered lighting products in a Z wave network. This is a high quality and highly reliable product.
This LED dimmer is perfect for domestic or commercial installation, ideal for a range of spaces such as retail outlets, hotels or your home.
The Zwave RGBW controller allows you to remotely control your LED lighting products. The Z wave receiver allows you to control 4 channel lighting. It is compatible with a range of products such as RGBW LED Tape / LED strip lights or Neon flex.
All non-battery operated nodes within the network will act as repeaters to increase the reliability of the Z-Wave network. This controller also supports the "Over The Air" (OTA) feature for any firmware updates as they become available.
The unit requires a 12v, 24v and 36v DC power supply with the same output voltage.
This is the perfect installation in your smart home and to extend your Z wave network. This can be integrated with your smart home automation making control over your led lighting effortless.
Technical Specification
Product Code: SRZV9101FARGBW
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 4 x 60w - 180w
Current: 4 x 5A
Input Voltage: 12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: Z Wave protocols
PCB Weight: Not Applicable
Size: 170 x 53.4 x 28mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 40 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
SDK: 6.71.01
Routing: Yes
FLiRS: No
Explorer Frame Support: Yes
Operation Frequency: 868.42 MHz
Operating Temp: 0-40°C
