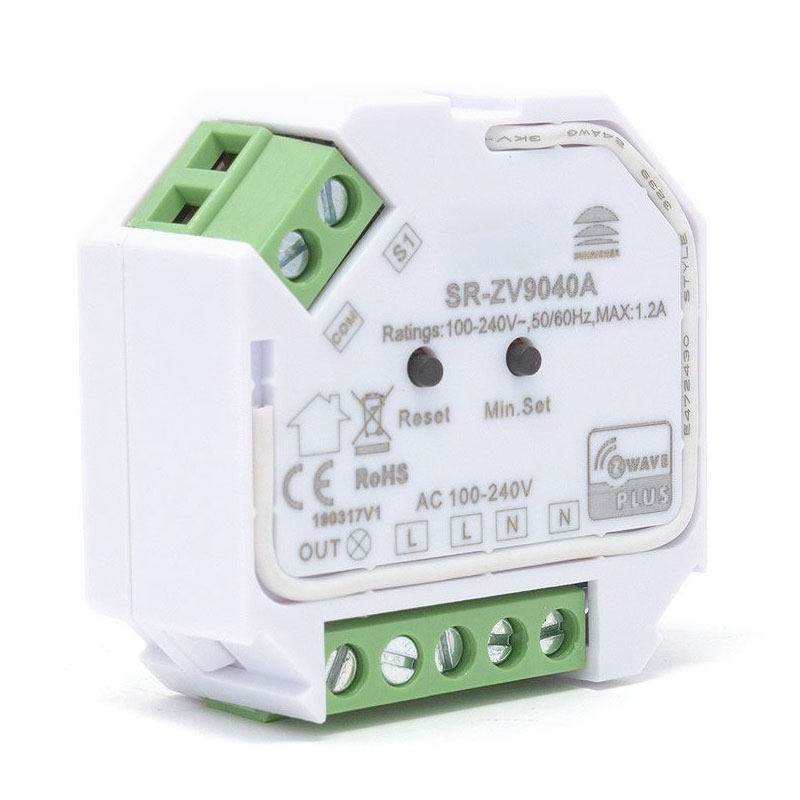

This micro smart dimmer is from the Sunricher range. The Z wave device is designed to work with a range of mains powered lighting products in a Z wave network.
This LED dimmer is perfect for domestic or commercial installation, ideal for a range of spaces such as retail outlets, hotels or your home.
The Z wave dimmer allows you to remotely control your LED lighting products. The LED dimmer allows you to either switch your lights on or off or adjust the brightness. The phase cut smart AC dimmer works by adjusting the input to the LED lights to allow you to dim your lights. It can achieve this either through a selection of Z wave devices or through a wall switch that is directly connected to it.
The Z wave smart switch may be connected in a two wire or three wire configuration. This enables the unit to operate either with or without a neutral lead.
This LED dimmer switch can be used with a range of products such as dimmable LED Tape / LED strip lights or Neon flex. It can also compatible with incandescent mains powered Halogen lights, low voltage Halogen lights with electronic transformer and low voltage LED lighting with transformers.
The smart dimmer is equipped with "smart light source detection" which makes configuration easier and ensures compatibility of the device.
The unit has an input and output voltage of 100v and 240v AC.
This is the perfect installation in your smart home and to extend your Z wave network. This can be integrated with your smart home automation making control over your led lighting effortless.

Technical Specification
Product Code:    SRZV9040A
Product Packed:    Gift box
Manufacturer:    LED Technologies
Product Type:    Dimmer
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Current:    1.2A Max
Input Voltage:    100v - 240v AC
Output Voltage:    100v - 240v AC
Connectivity:    Z Wave protocols
Size:    45.5 x 45 x 20.3mm
Dimmable:    Yes
Wireless Range:    Up to 40 metres
Voltage Type:    Mains Voltage
Relative Humidity:    8% to 80%
SDK:    6.71.03
Routing:    Yes
FLiRS:    No
Explorer Frame Support:    Yes
Operation Frequency:    868.42 MHz
Operating Temp:    0-40°C
