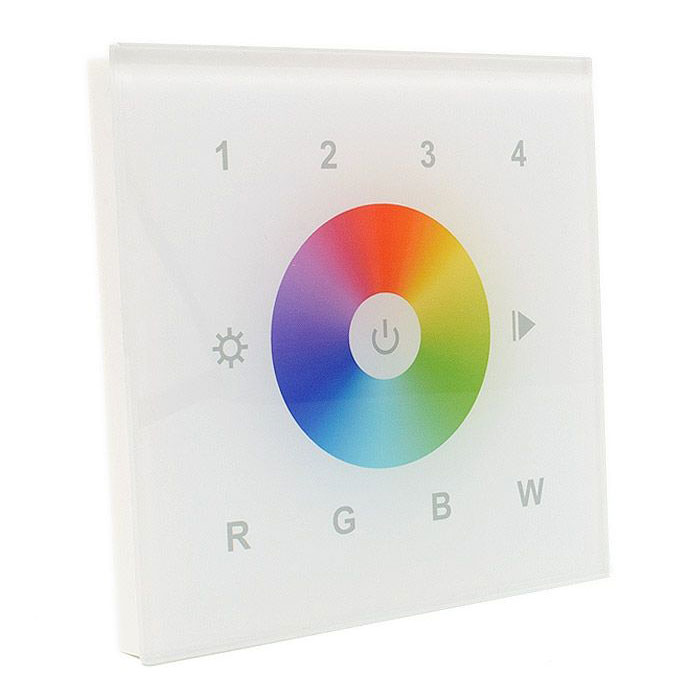

Sunricher Z-Wave RGBW 4 Group Wall Panel White (Mains voltage)
From our range of Sunricher Z-Wave licenced products, this four group wall panel controller is a security enabled Z-Wave Plus device that can control other Z-Wave devices and activate various scenes in Gateways. The wall controller can be included in any Z-Wave network with other Z-Wave certified devices and all non‐battery operated "nodes" within the network will also act as repeaters to increase the reliability and range of the Z-Wave network.
Although the wall panel can control other devices it cannot act as Z-Wave network primary or secondary controller so a security enabled controller is required to take full advantage of all the functions on the wall panel. The wall panel also supports the "Over The Air" (OTA) feature for any firmware updates as they become available.
When incorporated into your Z-Wave system this wall panel is perfect for controlling your RGB LED products and it also has an instant white button enabling it to mix white using the RGB colours. As a high quality product it is perfect for both commercial and domestic use.
Technical Specification
Product Code: SRZV9001T4RGBWWH
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 0.50w
Input Voltage: 100v - 240v AC
Connectivity: Z Wave protocols
PCB Weight: Not Applicable
Size: 86 x 86 x 29.1 mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 40 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
SDK: 6.71.01
Routing: Yes
FLiRS: Yes
Operation Frequency: 868.42MHz
Operating Temp: 0-40°C
