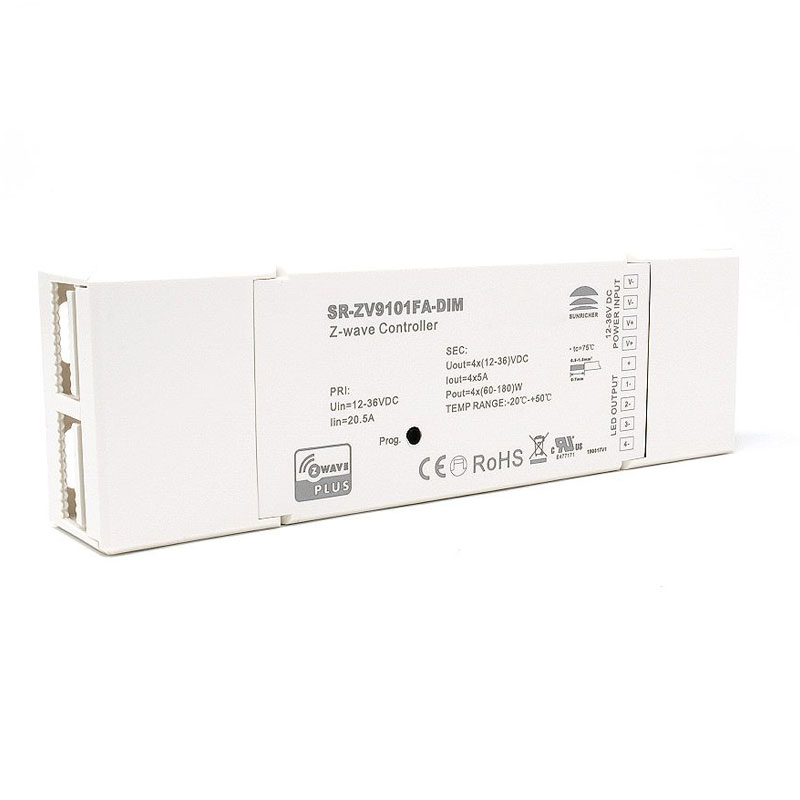

Sunricher Z-Wave Single Colour Receiver
This dual channel Z wave receiver is from the Sunricher range. It is designed to be integrated into your Z wave network. It is a high quality product and is highly reliable.
The Z wave led controller is ideal for commercial and domestic markets. It can be installed in a range of spaces such as hotels, offices and your home.
The Z wave controller can be operated with a range of Z wave certified devices regardless of manufacturer. This ensures easy control over your professional LED lighting.
The LED light controller can be used with a range of LED products such as single coloured LED Tape / LED strip lights or Neon flex. It is designed to control single colour lighting to adjust the light intensity.
The controller will act as a repeater to increase reliability and range of the Z wave system using the non-battery nodes within the network. This controller also supports the "Over The Air" (OTA) feature for any firmware updates as they become available.
This is the perfect installation for your smart home. Z wave Mesh networks are designed to be integrated into your home network. You can then effortlessly control your lighting through smart home devices.
The unit requires a 12v, 24v or 36v DC input and has the same output voltage with a wireless range of 40m.
Technical Specification
Product Code: SRZV9101FADIM
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Receiver
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 4 x 60w - 180w
Current: 4 x 5A
Input Voltage: 12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: Z Wave protocols
PCB Weight: Not Applicable
Size: 170 x 53.4 x 28mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 40 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
SDK: 6.71.01
Routing: Yes
FLiRS: No
Explorer Frame Support: Yes
Operation Frequency: 868.42 MHz
Operating Temp: 0-40°C
