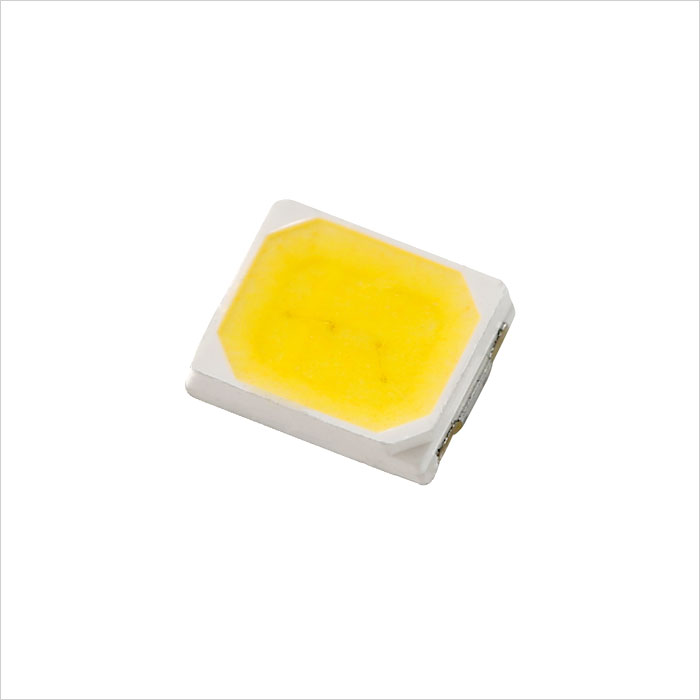

    2835 SMD LED Series - 6000K Cool White Surface Mount LED w/120 Degree Viewing Angle

      (10 Reviews) | Write a review
    SKU: SMD-2835-6000K
    Discontinued
    Starting at: $0.29
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This Epistar 2835 SMD surface mount component LED in Cool White features 25 lumens of 6000K color temperature, 80 CRI, and a 120 degree viewing angle. Price listed is per unit, Also available in Natural White and Warm White.

    Series

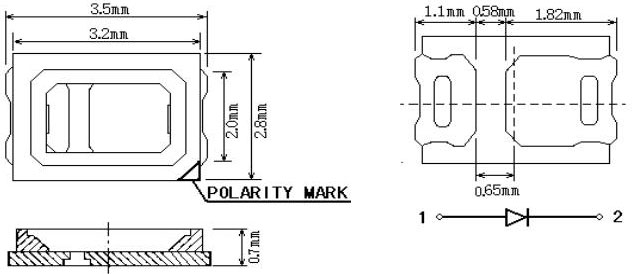

    Outline Dimensions


    TECHNICAL DETAILS
    CRI:  80 CRI
    Color Temperature:  6000 K
    Continuous Forward Current:  60mA
    Forward Voltage:  3.2V
    LED Color:  Cool 6000K
    LED Package:  2.8mm x 3.5mm
    LED Type:  2835 SMD
    Lumen:  25 Lumen
    Maximum Forward Voltage:  3.4V
    Millicandela:  8000mcd
    Operating Temperature:    -20~+80 °C (-4~+176 °F)
    Power Dissipation:  0.2W
    Reverse Voltage:  5V
    Storage Temperature:  -40~+85 °C
    Total Power Consumption:  2.2 Watts
    Viewing Angle:    120 degree
    Package Weight:  0.01oz (0kg)
    Package Dimensions:  0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
    All specifications are subject to change without notice.

    Product Parameters

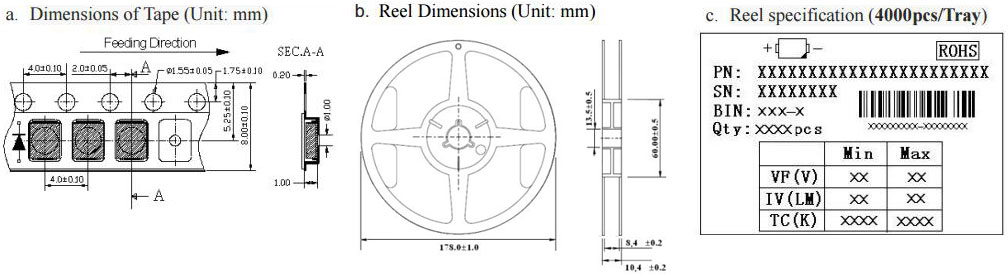

    Packaging Specifications
