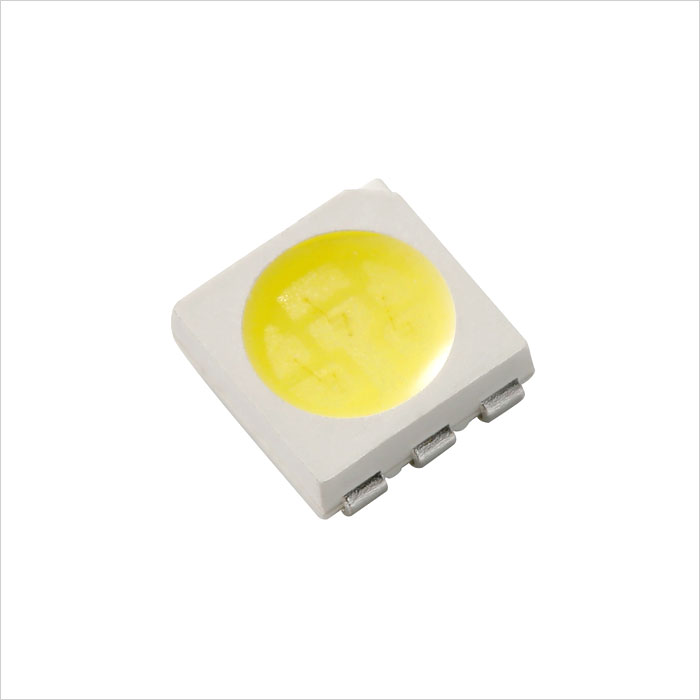

5050 SMD LED Series - 10500K Cool White Surface Mount LED w/120 Degree Viewing Angle

(9 Reviews) | Write a review

SKU: SMD-5050-10500K

This 5050 SMD 3 chip surface mount LED in Cool White features 19 lumens of 10500K color temperature and a 120 degree viewing angle. Price listed is per unit, Also available in Warm White and Pure White.

Series

Outline Dimensions

TECHNICAL DETAILS
Color Temperature: 10500 K
Continuous Forward Current: 3x20 mA
CRI: 85 CRI
Forward Voltage: 3.2V
LED Color: Cool 10500K
LED Package: 5mm x 5mm
LED Type: 5050 SMD
Lumen:   19 Lumen
Maximum Forward Voltage: 3.4V
Millicandela: 6000mcd
Operating Temperature:   -20~+80 °C (-4~+176 °F)
Power Dissipation: 3x120mW
Reverse Voltage: 5V
Storage Temperature: -40~+85 °C
Total Power Consumption: 0.192 Watts
Viewing Angle:   120 degree
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
All specifications are subject to change without notice.

Product Parameters

Packaging Specifications
