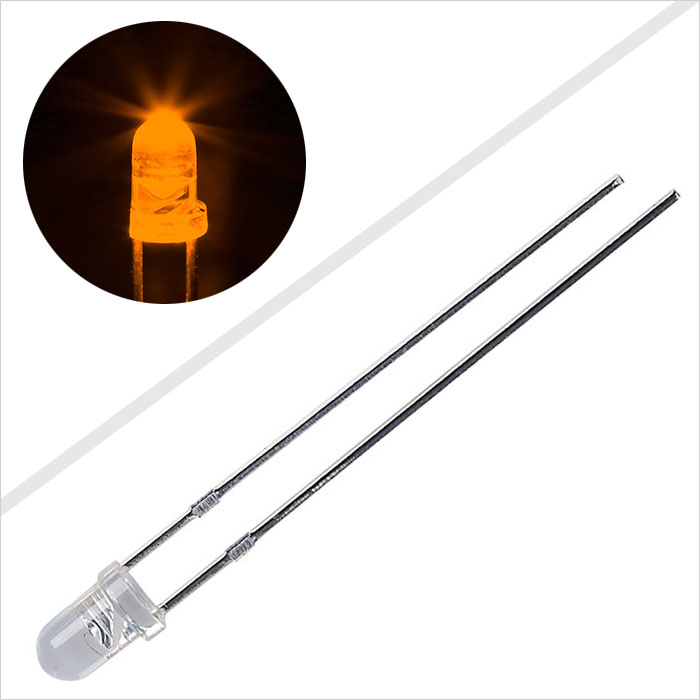

    3mm Super Bright Yellow LED - 592nm - T1 Through Hole LED w/ 20 Degree Viewing Angle

      (7 Reviews) | Write a review
    SKU: RL3-Y8120-CC
    Discontinued
    Starting at: $0.29
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This yellow LED is designed for models, sign lighting, indicator lights, and other small projects. It has an output of 8,100mcd and a dominant wavelength of 592nm. The T1 through-hole 3mm LED has a clear lens and emits a 20° beam of illumination. It has a typical forward voltage of 2.0V at 20mA and a peak forward current of 100mA. Use of a resistor or other current-limiting device is crucial to prevent premature LED failure. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate. Price listed is per unit; however, bulk discounts are available and are automatically applied to your order.

    Dimensional Drawings


    TECHNICAL DETAILS
    Continuous Forward Current:    20 mA
    Forward Voltage:    2.0V
    LED Color:    Yellow
    LED Package:    3 mm (T-1)
    Lens:    Clear
    Lumen:    0.8 Lumen
    Maximum Forward Voltage:    2.4V
    Millicandela:    8100mcd
    Operating Temperature:    -40~+85 °C (-40~+185 °F)
    Peak Forward Current:    100mA
    Power Dissipation:    60mW
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Total Power Consumption:    0.04 Watts
    Tube Diameter:    T-1
    Viewing Angle:    20 degree
    Wavelength:    592 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.24" (1cm) x 0.16" (0cm) x 0.16" (0cm)

    Applications / Uses
    Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
