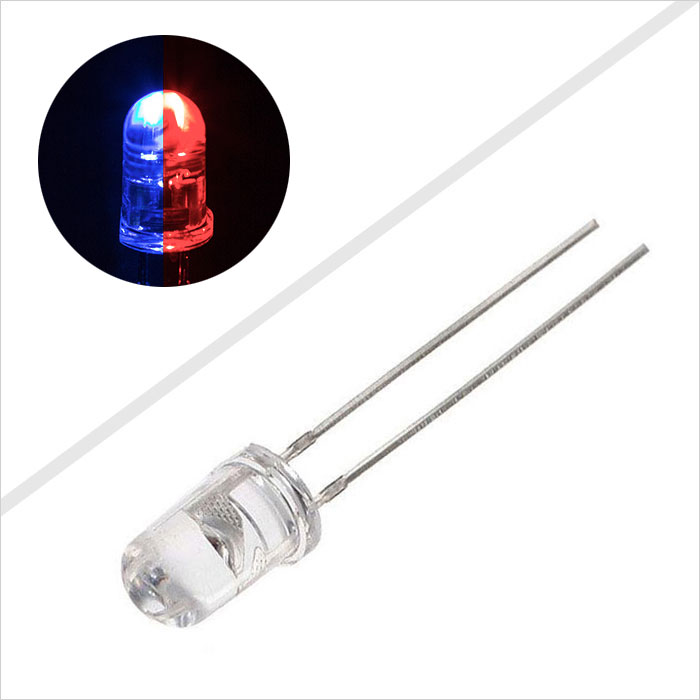

5mm through hole blinking Red and Blue LED. Features 470nm and 635nm wavelengths and a 20 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Dimensional Drawings

TECHNICAL DETAILS
Continuous Forward Current:    20 mA
Forward Voltage:    5.0V
LED Color:    Blinking Red/Blue
LED Package:    5 mm (T-1 3/4)
Lens:    Clear
Lumen:    0.2 Lumen
Millicandela:    2000mcd
Operating Temperature:    -40~+80 °C (-40~+176 °F)
Reverse Current:    100mA
Reverse Voltage:    5V
Storage Temperature:    -40~+80 °C
Total Power Consumption:    0.1 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    20 degree
Wavelength:    470 nm, 635 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.

Wavelengths
