    5mm Clear Tri-Color LED - RGB T1 3/4 LED w/ 15 Degree Viewing Angle

      (4 Reviews) | Write a review
    SKU: RL5-RGB15-C
    Discontinued
    Starting at: $0.49
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,14 and Wed,Nov,20. order with 2days,9hrs and 31 min.

    5mm Tri-Color through hole LED. Features 472nm/525nm/630nm wavelengths, 5,000mcd, and 15 degree viewing angle. Available in common anode or common cathode. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

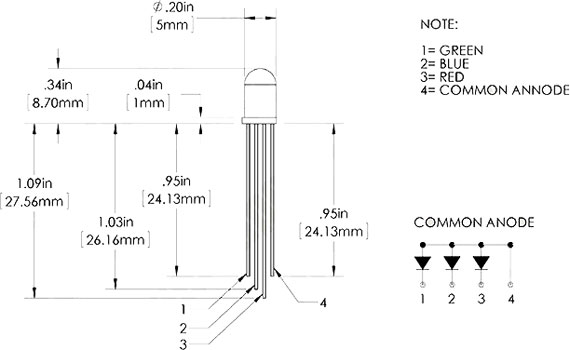

    Dimensional Drawings


    TECHNICAL DETAILS
    Continuous Forward Current:    20 mA
    Forward Voltage:    2.0V
    LED Color:    RGB
    LED Package:    5 mm (T-1 3/4)
    Lens:    Clear
    Maximum Forward Voltage:    2.6V
    Millicandela:    1000-5000mcd
    Operating Temperature:    -40~+85 °C (-40~+185 °F)
    Peak Forward Current:    50mA
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Total Power Consumption:    0.044 Watts
    Tube Diameter:    T1-3/4
    Viewing Angle:    15 degree
    Wavelength:    472 nm, 525 nm, 630 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

    Applications / Uses
    Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.

    Wavelengths
