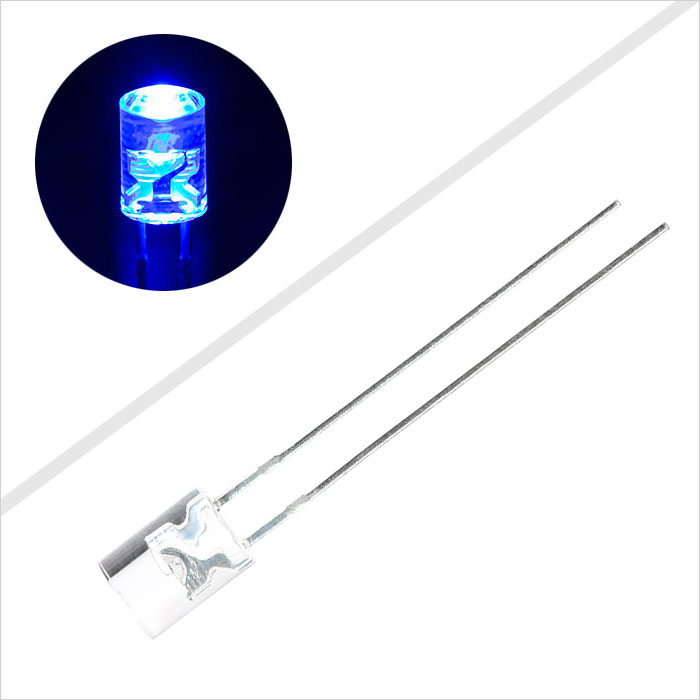

5mm Cylindrical Flat Top Blue LED - 470 nm - T1 3/4 LED w/ 120 Degree Viewing Angle
Super Bright 5mm Blue LED with through hole. Features a 470nm wavelength Blue LED, 1,200 millicandela with 120 degree viewing angle with flat tip. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
TECHNICAL DETAILS
Continuous Forward Current: 30 mA
Forward Voltage: 3.3V
LED Color: Blue
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 4 Lumen
Maximum Forward Voltage: 3.8V
Millicandela: 1200mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Peak Forward Current: 100mA
Power Dissipation: 120mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -30~+100 °C
Total Power Consumption: 0.099 Watts
Tube Diameter: T1-3/4
Viewing Angle: 120 degree
Wavelength: 470 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
