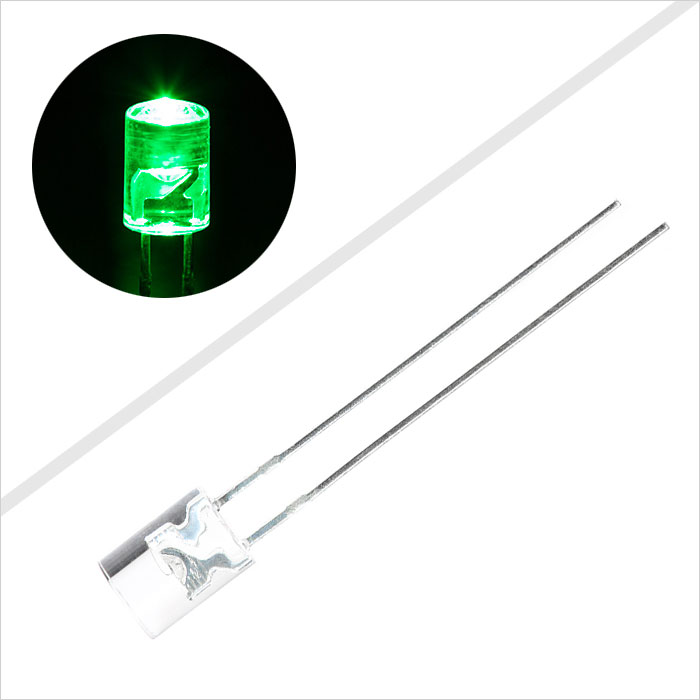

    5mm Cylindrical Flat Top Green LED - 523 nm - T1 3/4 LED w/ 120 Degree Viewing Angle

      (2 Reviews) | Write a review
    SKU: RL5-G16120-CC
    Discontinued
    Starting at: $0.55
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    5mm through hole component LED in green. Features 1,600 millicandela, 523nm wavelength, and a wide 120 degree view angle via the flat top design. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.


    TECHNICAL DETAILS
    Continuous Forward Current:    30 mA
    Forward Voltage:    3.3V
    LED Color:    Green
    LED Package:    5 mm (T-1 3/4)
    Lens:    Clear
    Lumen:    5 Lumen
    Maximum Forward Voltage:    3.8V
    Millicandela:    1600mcd
    Operating Temperature:    -20~+80 °C (-4~+176 °F)
    Peak Forward Current:    100mA
    Power Dissipation:    120mW
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -30~+100 °C
    Total Power Consumption:    0.099 Watts
    Tube Diameter:    T1-3/4
    Viewing Angle:    120 degree
    Wavelength:    523 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

    Applications / Uses
    Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
