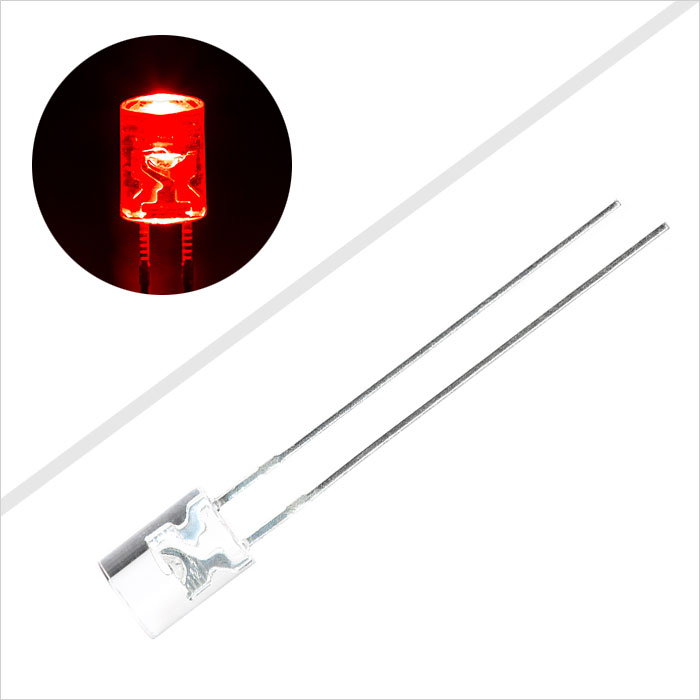

5mm Red through hole LED. Features 625nm wavelength, 1,200mcd, 120 degree viewing angle, and flat tip. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Dimensional Drawings

TECHNICAL DETAILS
Continuous Forward Current:    30 mA
Forward Voltage:    2.0V
LED Color:    Red
LED Package:    5 mm (T-1 3/4)
Lens:    Clear
Lumen:    4 Lumen
Maximum Forward Voltage:    2.4V
Millicandela:    1200mcd
Operating Temperature:    -20~+80 °C (-4~+176 °F)
Peak Forward Current:    100mA
Power Dissipation:    85mW
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -30~+100 °C
Total Power Consumption:    0.12 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    120 degree
Wavelength:    625 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
