    5mm Diffused Red Super Bright Round Through Hole LED - 625 nm - T1 3/4 LED w/ 360 Degree Viewing Angle

      (1 Reviews) | Write a review
    SKU: RL5-R10-D
    Discontinued
    Starting at: $0.59
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    5mm Red through hole LED. Features 625nm wavelength, 100mcd, and 360 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

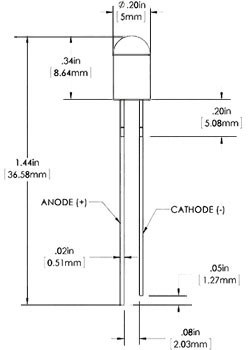

    Dimensional Drawings


    TECHNICAL DETAILSContinuous Forward Current:    20 mA
    Forward Voltage:    1.9V
    LED Color:    Red
    LED Package:    5 mm (T-1 3/4)
    Lens:    Diffused
    Lumen:    1 Lumen
    Maximum Forward Voltage:    2.1V
    Millicandela:    100mcd
    Operating Temperature:    -40~+100 °C (-40~+212 °F)
    Peak Forward Current:    100mA
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -40~+100 °C
    Total Power Consumption:    0.042 Watts
    Tube Diameter:    T1-3/4
    Viewing Angle:    360 degree
    Wavelength:    625 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

    Applications / Uses
    Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
