    5mm Diffused Tri-Color Through Hole LED - RGB T1 3/4 LED w/ 60 Degree Viewing Angle

      (4 Reviews) | Write a review
    SKU: RL5-RGB-XD
    Discontinued
    Starting at: $0.45
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    Tri-Color 5mm through hole LED with diffused lens. Features 467/520/625 wavelengths, 5,000mcd, and a 60 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

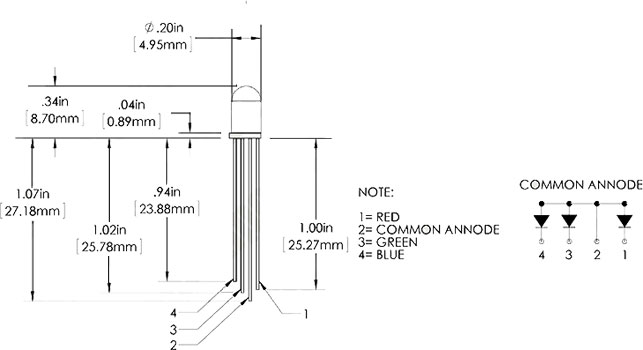

    Dimensional Drawings


    TECHNICAL DETAILS
    Continuous Forward Current:    20 mA
    Forward Voltage:    2.0V
    LED Color:    RGB
    LED Package:    5 mm (T-1 3/4)
    Lens:    Diffused
    Maximum Forward Voltage:    2.4V
    Operating Temperature:    -40~+60 °C (-40~+140 °F)
    Peak Forward Current:    50mA
    Power Dissipation:    100mW
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Total Power Consumption:    0.06 Watts
    Tube Diameter:    T1-3/4
    Viewing Angle:    60 degree
    Wavelength:    467 nm, 520 nm, 625 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

    Applications / Uses
    Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.

    Wavelengths
