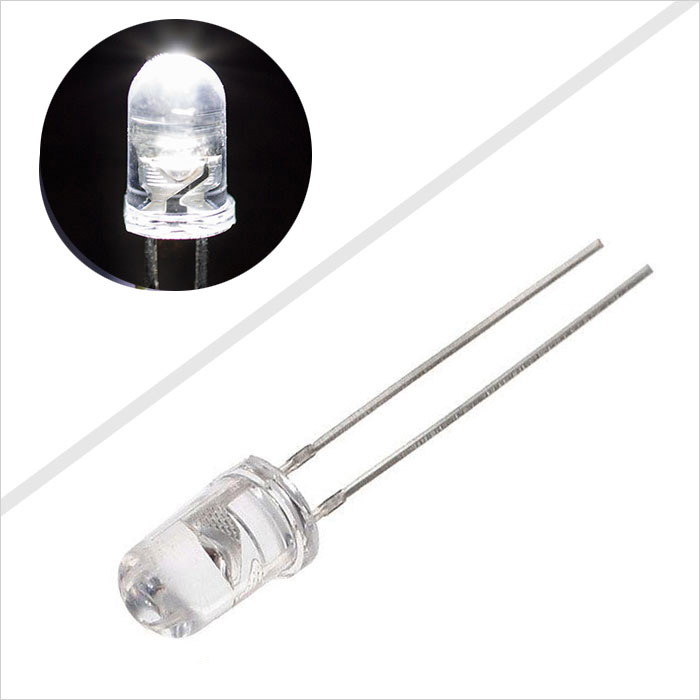

    5mm Super Bright Cool White Through-Hole LED - 7300K - T1 3/4 LED w/ 15 Degree Viewing Angle

      (3 Reviews) | Write a review
    SKU: RL5-CW10000-C
    Discontinued
    Starting at: $0.69
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Tue,Jan,07 and Mon,Jan,13. order with 2days,9hrs and 31 min.

    5mm through hole component LED in cool white. Features 10,000 millicandela, 7300K color temperature, and a 15 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

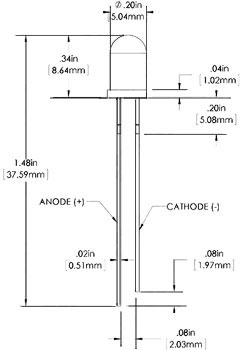

    Dimensional Drawings


    TECHNICAL DETAILS
    Color Temperature:    7300 K
    Continuous Forward Current:    30 mA
    Forward Voltage:    3.4V
    LED Color:    Cool 7300K
    LED Package:    5 mm (T-1 3/4)
    Lens:    Clear
    Lumen:    0.7 Lumen, 5 Lumen
    Maximum Forward Voltage:    4V
    Millicandela:    10000mcd
    Operating Temperature:    -25~+80 °C (-13~+176 °F)
    Peak Forward Current:    70mA
    Power Dissipation:    120mW
    Reverse Current:    100mA
    Reverse Voltage:    5V
    Storage Temperature:    -30~+100 °C
    Total Power Consumption:    0.102 Watts
    Tube Diameter:    T1-3/4
    Viewing Angle:    15 degree
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

    Applications / Uses
    Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.


    Product Review

    Alan T.verified buyer
    United States
    2024/10/13
    Got exactly what I needed at a good price with quick delivery. Highly recommend.
    Jaime F.verified buyer
    Canada
    2024/04/03
    Perfect
    John H.verified buyer
    United Kingdom
    2022/04/07
    I have an old Yamaha Receiver that the display lamp burned out years ago. I had installed a "normal" white LED with a "frosted" lens. The light was very dim and did a poor job of lighting the edges of the display. I recently installed this led and the difference was phenomenal. The display now looks better than I remember it originally. It seems the whole plastic "case" has the fluorescent material making the light from this LED truly 360 degrees.
    Edward L.verified buyer
    United States
    2021/04/07
    Very Happy! SmartBrightLEDs was very helpful in helping me decide what products best suited my project. Turned out great!
